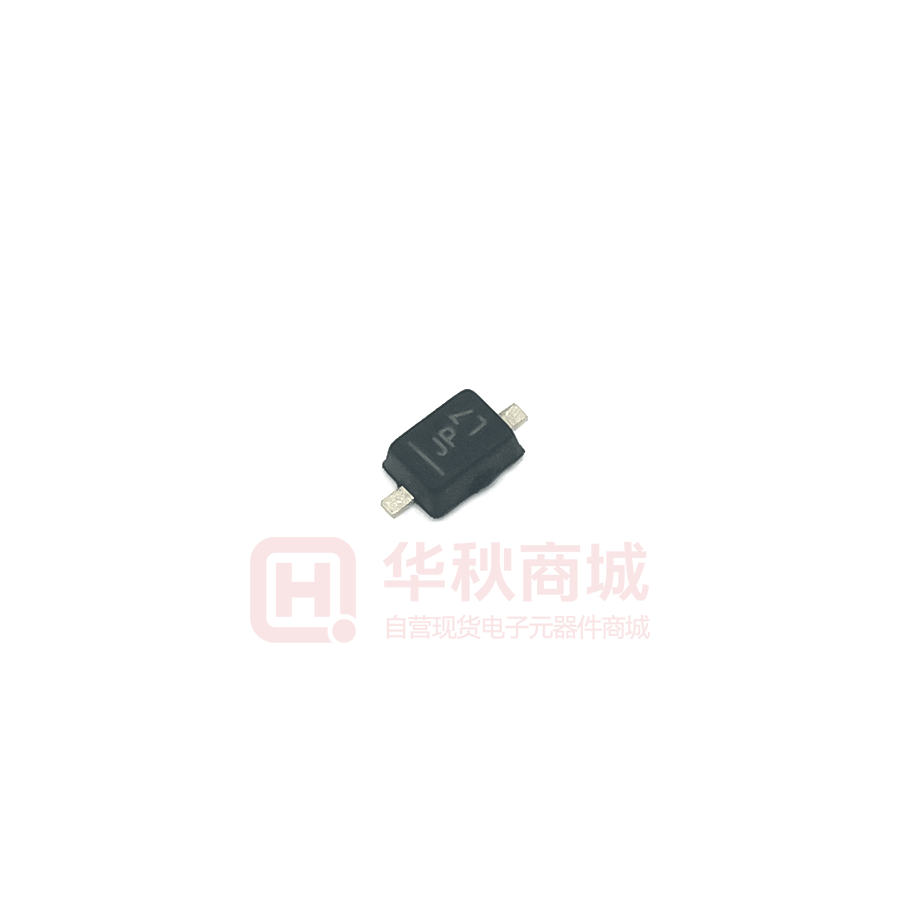

Images are for reference only

Switching Diodes (Small Signal) DIODES 1N4148WSF-7

  • Mfr Part #1N4148WSF-7
  • ManufacturerDIODES
  • HQ Part #DS0008745
  • PackageSOD323F
  • Lead Time Ship immediately
  • DescriptionSwitching Diodes VR=100V IF=250mA Trr=4ns P=400mW SOD323F-2

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Maximum Dissipated Power400mW
Reverse Peak Voltage (Maximum)100V
Operating Temperature Junction-65°C~150°C
Operating Temperature-55℃~150℃
Moisture Sensitivity Level (Msl)-
Diode Type-
Reverse Withstand Voltage Vr100V
Average Rectification Current If250mA
Forward Voltage Drop Vf1.25V
Reverse Recovery Time (trr)4ns
Reverse Leakage Current Ir500nA
Supplier Device PackagingSOD-323F
Package / CaseSOD323F
Installation TypeSMT
Forward Voltage VF Max1.25V
Ifsm - Peak Forward Surge Current4A
Breakdown Voltage100V
Storage Temperature-55~+150℃
Lead Quantity2pin
L x W/Size1.70 x 1.25mm
CertificationAEC-Q101, RoHS
Country of OriginAmerica
Original ManufacturerDiodes Incorporated
Total Capacitance C1.5pF
Part StatusActive
Lead Free Or NotNo
