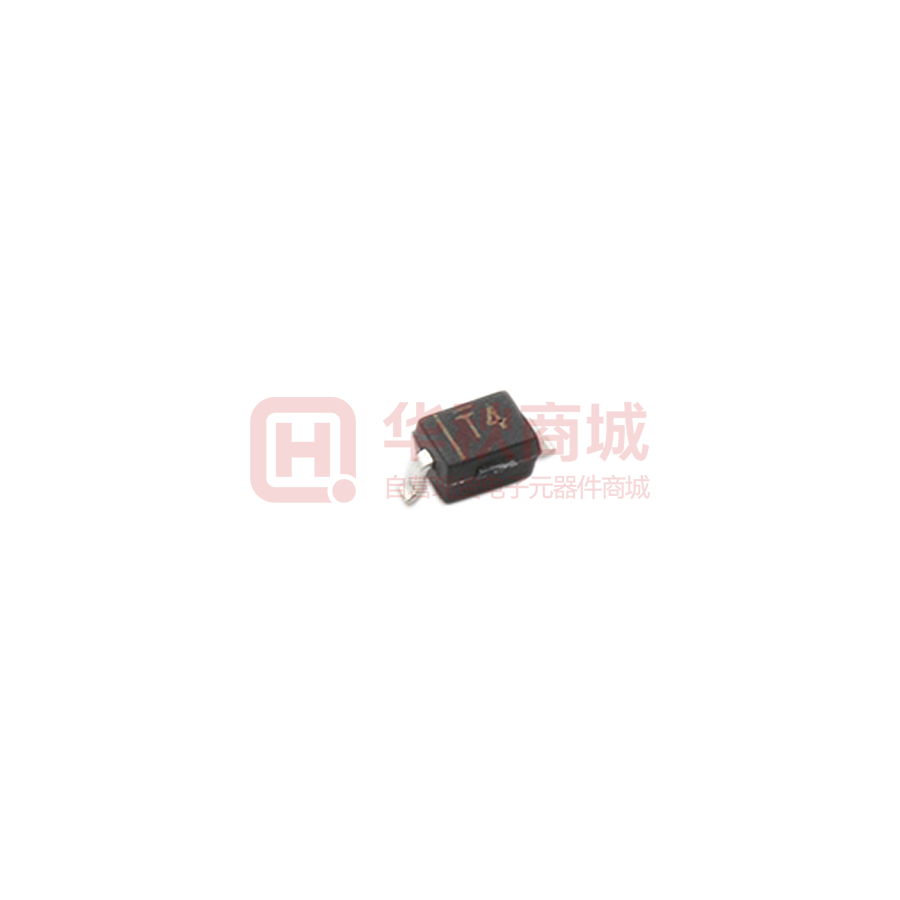

Switching Diodes (Small Signal) DIODES 1N4148WS-7-F

  • Mfr Part #1N4148WS-7-F
  • ManufacturerDIODES
  • HQ Part #DS0001850
  • PackageSOD323
  • Lead Time Ship immediately
  • DescriptionSwitching Diodes VR=75V Io=150mA VF=1.25V@150mA PD=200mW SOD323-2

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Maximum Dissipated Power200mW
Reverse Peak Voltage (Maximum)75V
Diode ConfigurationSingle
Operating Temperature Junction-65°C~150°C
Operating Temperature-65℃~150℃
Moisture Sensitivity Level (Msl)-
Diode Type-
Reverse Withstand Voltage Vr75V
Average Rectification Current If150mA
Forward Voltage Drop Vf1.25V
Reverse Recovery Time (trr)4ns
Reverse Leakage Current Ir1µA
Supplier Device PackagingSOD-323
Package / CaseSOD323
Installation TypeSMT
Lead Spacing2.2mm
Forward Voltage VF Max1.25V
Ifsm - Peak Forward Surge Current2A
Breakdown Voltage75V
Vr - Reverse Voltage75V
Partlife CycleActive
Application LevelAEC-Q101
Storage Temperature-65~+150℃
Lead Quantity2pin
L x W/Size1.70 x 1.30mm
Country of OriginAmerica
Original ManufacturerDiodes Incorporated
Total Capacitance C2pF
Series1N4148WS / BAV16WS
Part StatusActive
Lead Free Or NotYes
