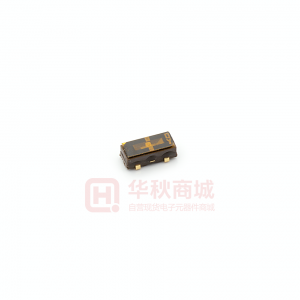

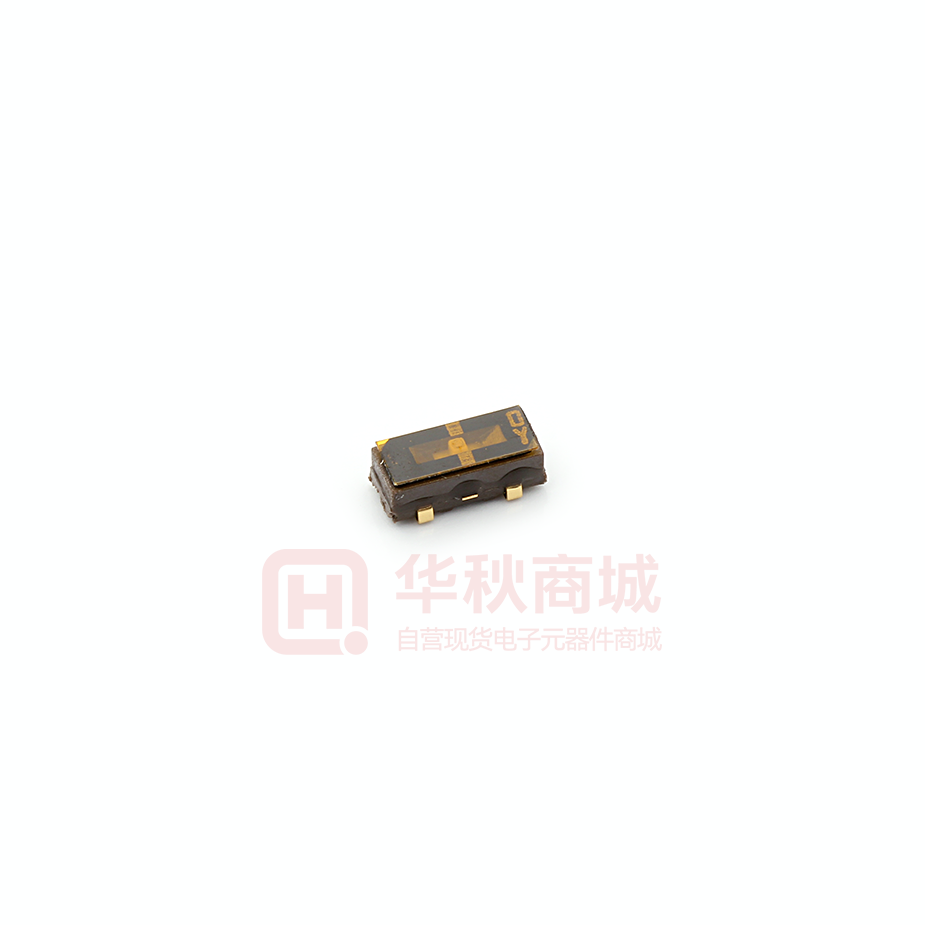

Images are for reference only
CJS-1201TA
- Mfr Part #CJS-1201TA
- ManufacturerNIDEC
- HQ Part #SW0049812
- PackageSMD-3P,5.4x2.5mm
- Lead Time Ship immediately
DescriptionSliding switch SMD-3P, 5.4x2.5mm single pole double throw 200 times vertical sticker
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Package / Case | SMD-3P,5.4x2.5mm | |
| Terminal Type | J-lead | |
| Installation Type | Vertical Sticker | |
| Contact Coating | Gold Over Copper | |
| Actuator Type | Sliding type(standard) | |
| Rated Voltage | 50V | |
| Rated Current-DC | 100mA | |
| Lead Quantity | 3Pin | |
| Contact Form | SPDT | |
| Partlife Cycle | Active | |
| Application Level | Industrial | |
| Storage Temperature | -40~+85℃ | |
| Application | Industrail | |
| Certification | RoHS | |
| MPQ | 1000pcs | |
| Country of Origin | Japan | |
| Original Manufacturer | Nidec Copal Electronics Inc. | |
| Brand | Nidec | |
| Switch Function | - | |
| Part Status | Active | |
| Series | CJS | |
| Lead Free Or Not | Yes | |
| Size | 5.40 x 2.50mm | |
| Operating Force | 5.9N | |
| Operating Life | 200Cycles | |
| Rated Voltage - Dc | 50V | |
| Rated Voltage Ac | - | |
| Colour | White | |
| Operating Temperature | -40℃~+85℃ | |
| Height | 2.50mm | |
| Contact Material | Copper Alloy | |
| Circuit | SPDT | |
| Packing | Tape/Reel | |
| Moisture Sensitivity Level (MSL) | - |
