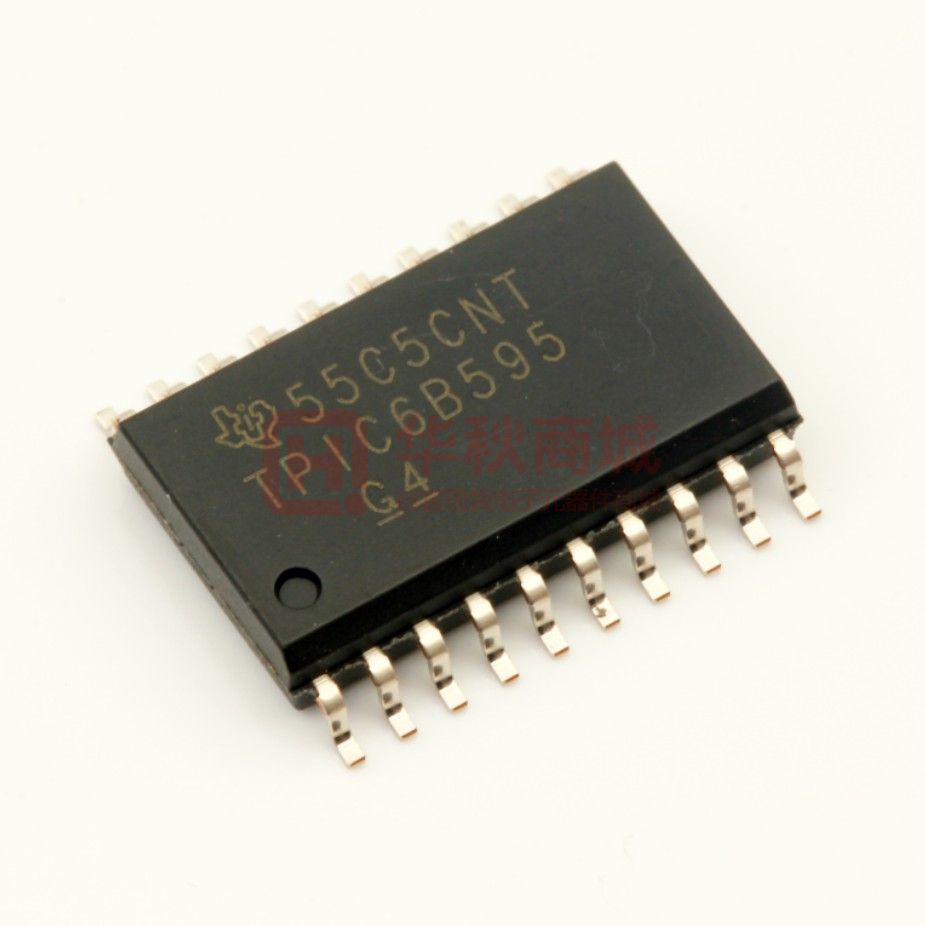

Images are for reference only

TPIC6B595DWR

  • Mfr Part #TPIC6B595DWR
  • ManufacturerTI
  • HQ Part #IC0128712
  • PackageSOIC20_12.8X7.5MM
  • Lead Time Ship immediately
  • Description4.5V~5.5V OpenDrain TPIC Serial To Serial Or Parallel SOIC-20-300mil Shifting Register ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Circuit Function-
Bits Per Element (Number Of I/O Channels)8
Output Type-
Logic Type-
Package / CaseSOIC20_12.8X7.5MM
Installation TypeSMT
Supply Voltage4.5V~5.5V
Lead Quantity20Pins
Height2.65mm
L x W/Size-
BrandTI
Operating Temperature-40~+125℃
Part StatusActive
SeriesTPIC
Moisture Sensitivity Level (MSL)-
Lead Free Or NotYes
