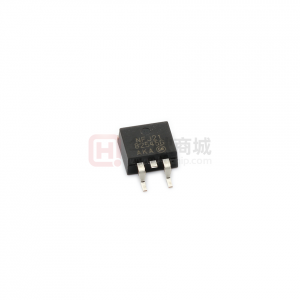

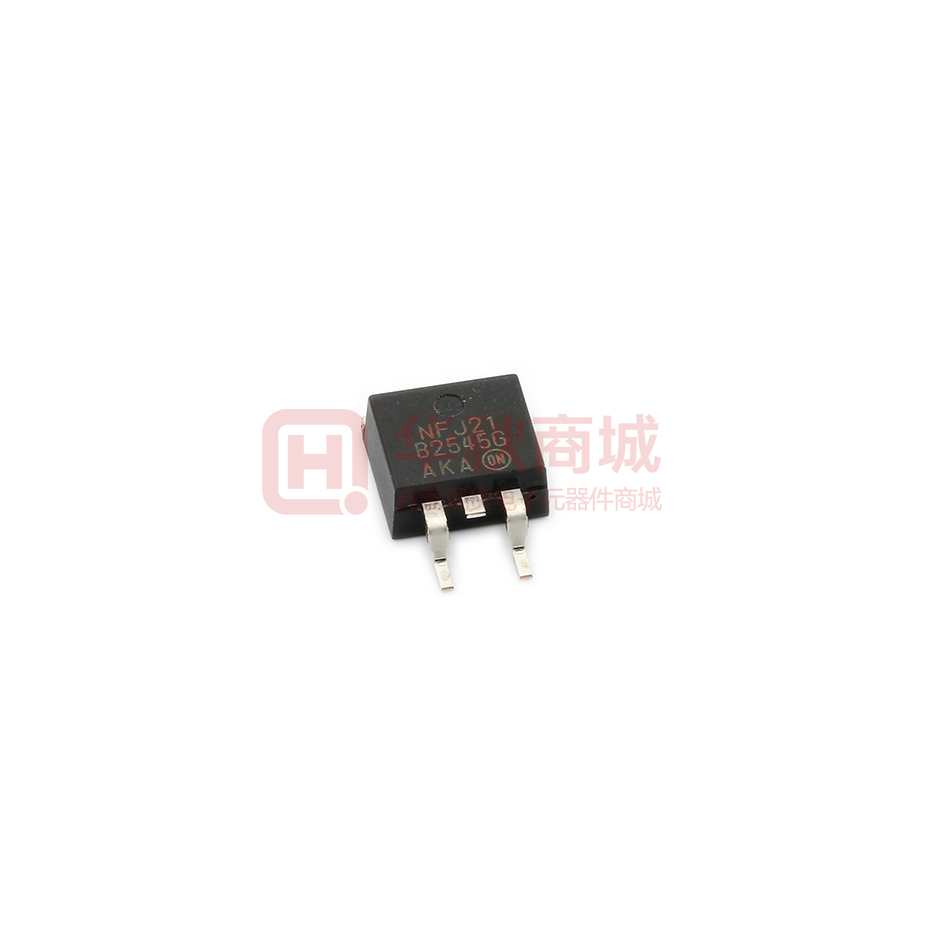

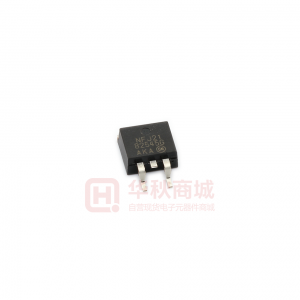

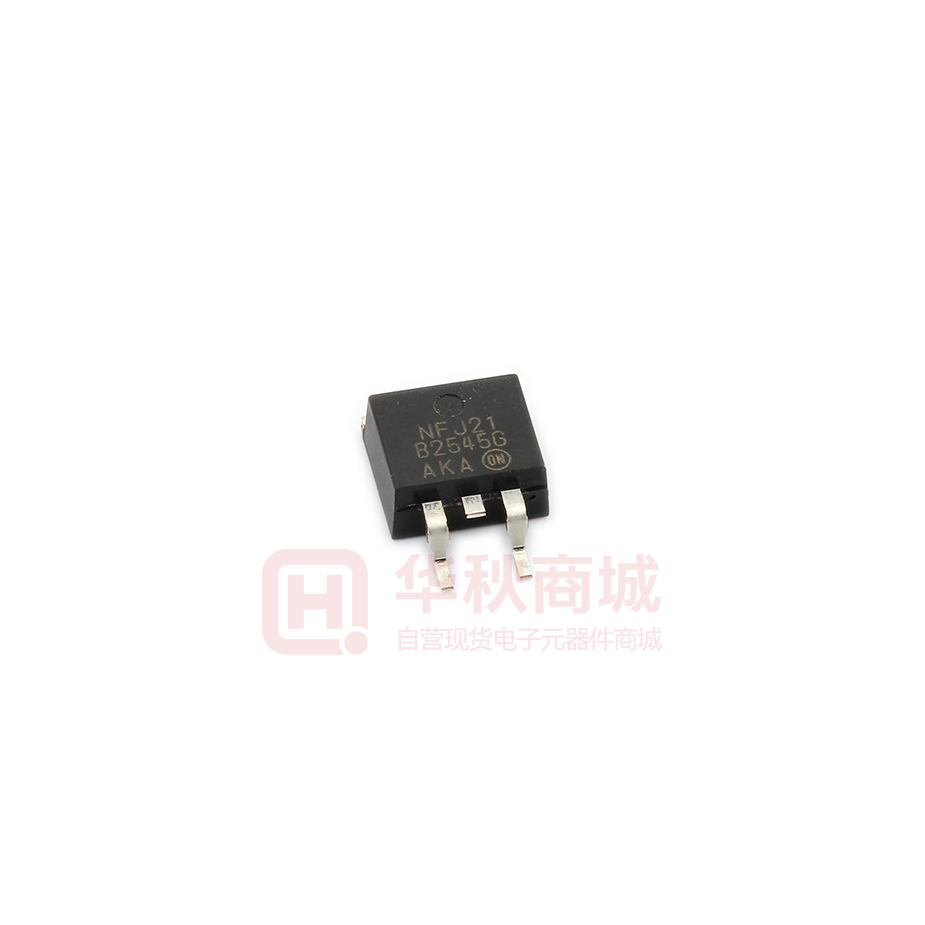

Images are for reference only

Schottky Diode ON MBRB2545CTT4G

  • Mfr Part #MBRB2545CTT4G
  • ManufacturerON
  • HQ Part #DS0026928
  • PackageTO263
  • Lead Time Ship immediately
  • Description45V -65℃~+175℃@(Tj) Dual Common Cathode 620mV@15A 200uA@45V 15A D2PAK Switching Diode ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
ConfigurationCommon Cathode
Reverse Peak Voltage (Maximum)45V
Current Average Rectification (Io) (Per Diode)15A
Diode Configuration-
Operating Temperature Junction-65°C~175°C
Operating Temperature-65℃~175℃
Moisture Sensitivity Level (Msl)-
Diode Type-
Reverse Withstand Voltage Vr45V
Average Rectification Current If15A
Forward Voltage Drop Vf620mV
Reverse Recovery Time (trr)-
Reverse Leakage Current Ir200µA
Supplier Device PackagingD2PAK-3
Package / CaseTO263
Installation TypeDIP
Lead Spacing5.08mm
Forward Voltage VF Max620mV
Ifsm - Peak Forward Surge Current150A
Vr - Reverse Voltage45V
Storage Temperature-65~+175℃
Lead Quantity3Pin
L x W/Size10.29 x 9.65mm
Country of OriginAmerica
Original ManufacturerON Semiconductor
Part StatusActive
