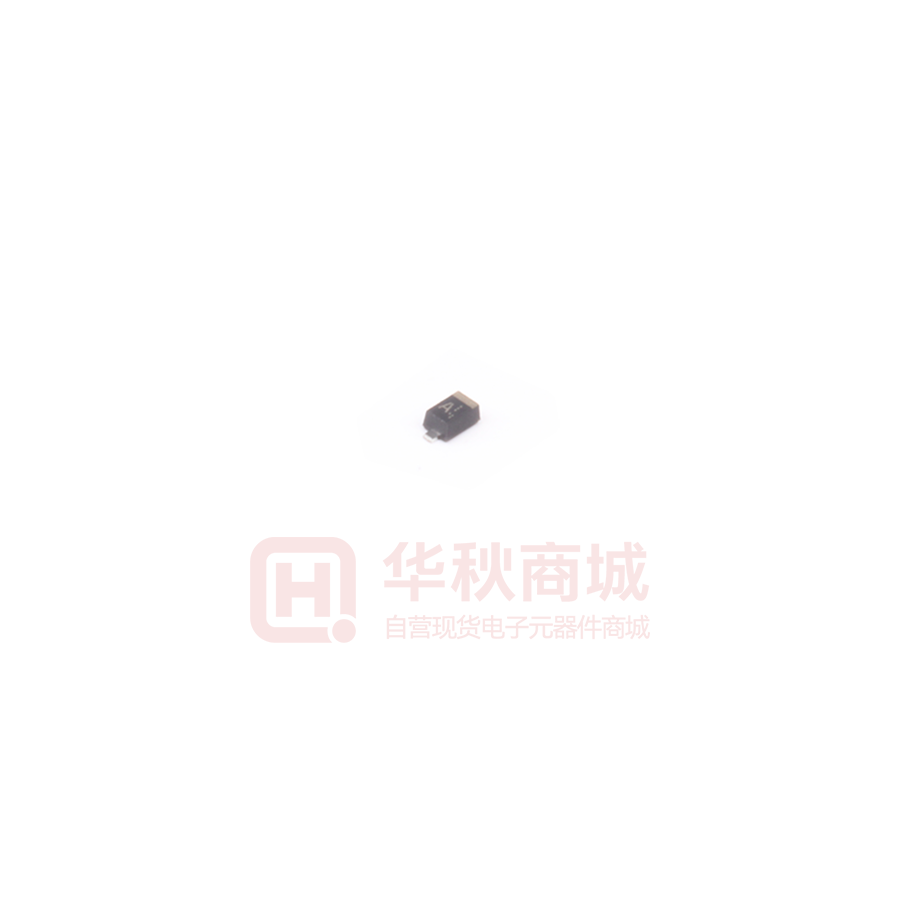

Images are for reference only

1SS400TE61

  • Mfr Part #1SS400TE61
  • ManufacturerROHM
  • HQ Part #DS0002601
  • PackageSOD523(SC-79)
  • Lead Time Ship immediately
  • Description80V +125℃@(Tj) 1.2V@100mA 4ns 100nA@80V 100mA SOD-523 Switching Diode ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Moisture Sensitivity Level (MSL)-
Diode Type-
Reverse Withstand Voltage Vr80V
Average Rectified Current100mA
Forward Voltage Drop Vf1.2V
Speed-
Reverse Recovery Time (trr)4ns
Reverse Leakage Current Ir100nA
Package / CaseSOD523
Installation TypeSMT
Forward Voltage VF Max1.2V
Lead Quantity2pin
Height0.60mm
L x W/Size1.20 x 0.80mm
Country of OriginJapan
Original ManufacturerRohm Co.,Ltd.
BrandRohm
Series-
Part StatusNot For New Designs
Lead Free Or NotYes
