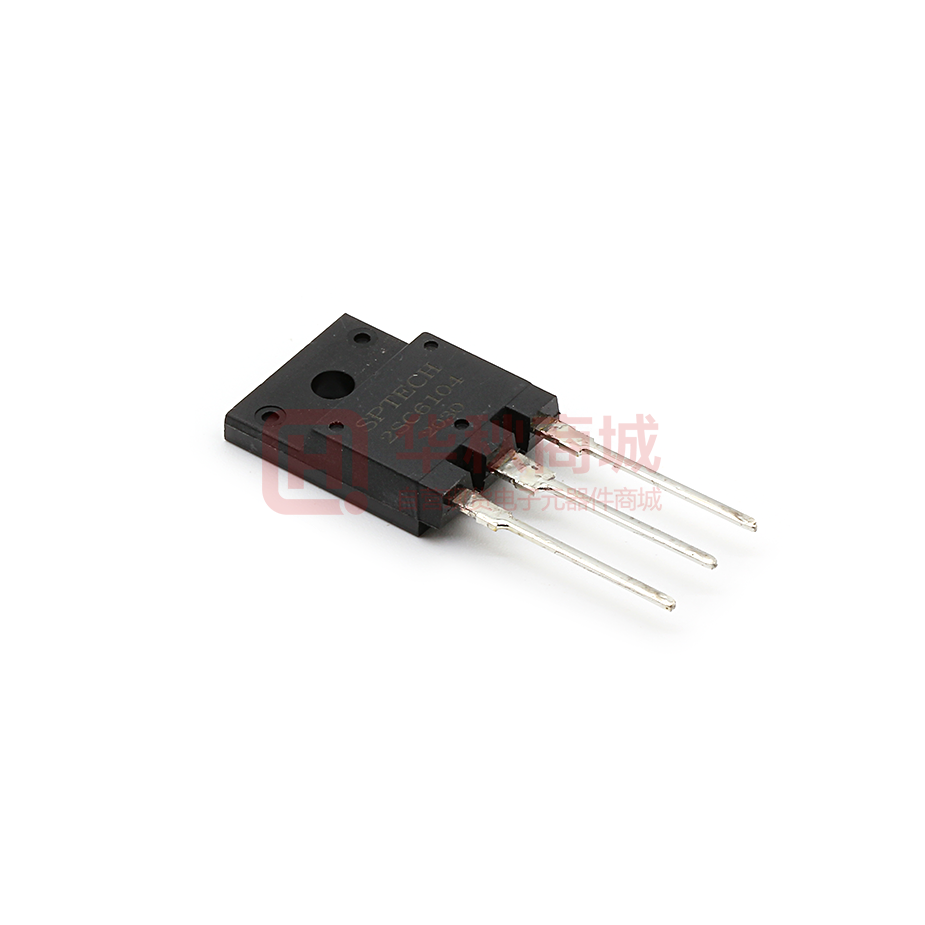

Images are for reference only
2SC6104
- Mfr Part #2SC6104
- ManufacturerSPTECH
- HQ Part #DS0141848
- PackageTO3PML
- Lead Time Ship immediately
Description10uA 50V 60W 60@5A,1V 15A 18MHz 500mV@5A,80mA NPN +150℃@(Tj) TO-3PN Bipolar Transistors - BJT ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Vce Saturation Pressure Drop | 500mV | |
| Operating Temperature | +150℃ | |
| Installation Type | DIP | |
| Collecting Emitter Breakdown Voltage Vce (Max) | 50V | |
| Transistor Type | NPN | |
| DC Current Gain (hFE) (Min&Range) | 60~360 | |
| Transition Frequency | 18MHz | |
| Package / Case | TO3PML | |
| Collector Current Ic | 15A | |
| Power Dissipation | 60W | |
| Partlife Cycle | Active | |
| Storage Temperature | -55~+150℃ | |
| Lead Quantity | 3Pin | |
| Height | 26.20mm | |
| L x W/Size | 16.10 x 5.70mm | |
| Brand | SPTECH | |
| Lead Free Or Not | Yes | |
| Part Status | Active |
