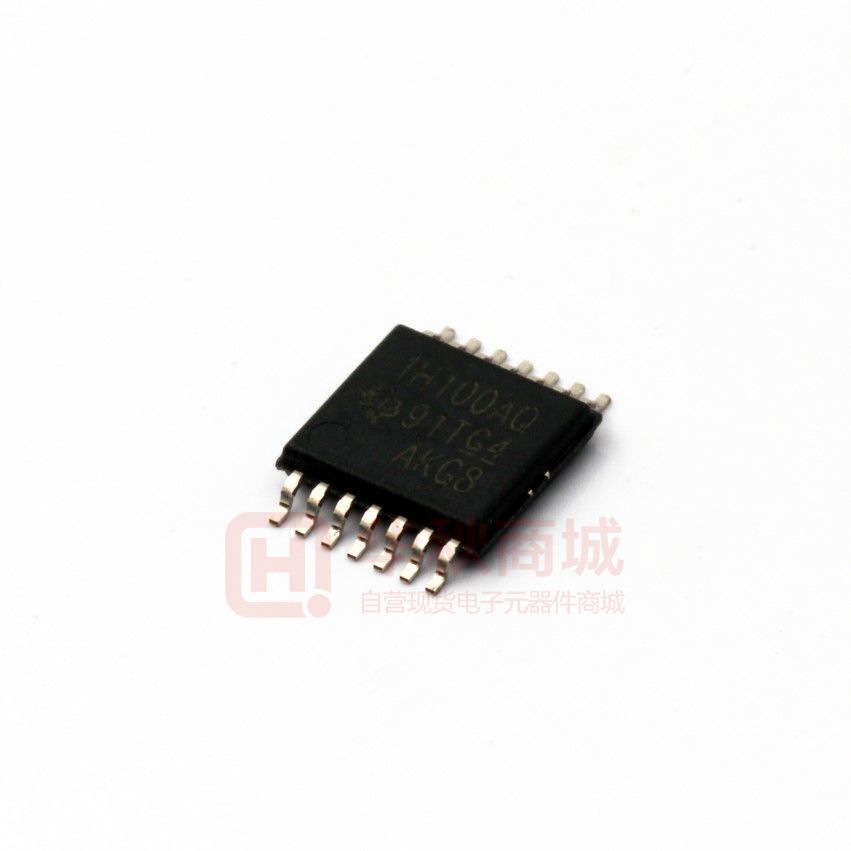

Images are for reference only
TPS1H100AQPWPRQ1
- Mfr Part #TPS1H100AQPWPRQ1
- ManufacturerTI
- HQ Part #IC0261362
- PackageHTSSOP14_5X4.4MM_EP
- Lead Time Ship immediately
DescriptionHTSSOP-14 Power Distribution Switches ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Lead Quantity | 15Pin | |
| Switch Type | General Purpose | |
| Output Current | 4A | |
| Type Of Output | N-Channel | |
| Interface | On/Off | |
| Output Configuration | High Side | |
| Ratio (Input: Output) | 1:1 | |
| Fault Protection | Current Limiting (Adjustable),Open Load Detect,Over Temperature,UVLO | |
| Package / Case | HTSSOP14_5X4.4MM_EP | |
| Installation Type | SMT | |
| Working Voltage | 5V~40V | |
| Original Manufacturer | Texas Instruments Incorporated | |
| Height | 0.65mm | |
| Number Of Channels | 1 | |
| Load Voltage | 5~40V | |
| On Resistance | 80mΩ | |
| Size | 5.00 x 4.40mm | |
| Characteristic | Status Flag | |
| Operating Temperature | -40℃~+125℃ | |
| Series | TPS1H100-Q1 | |
| Lead Free Or Not | Yes |
