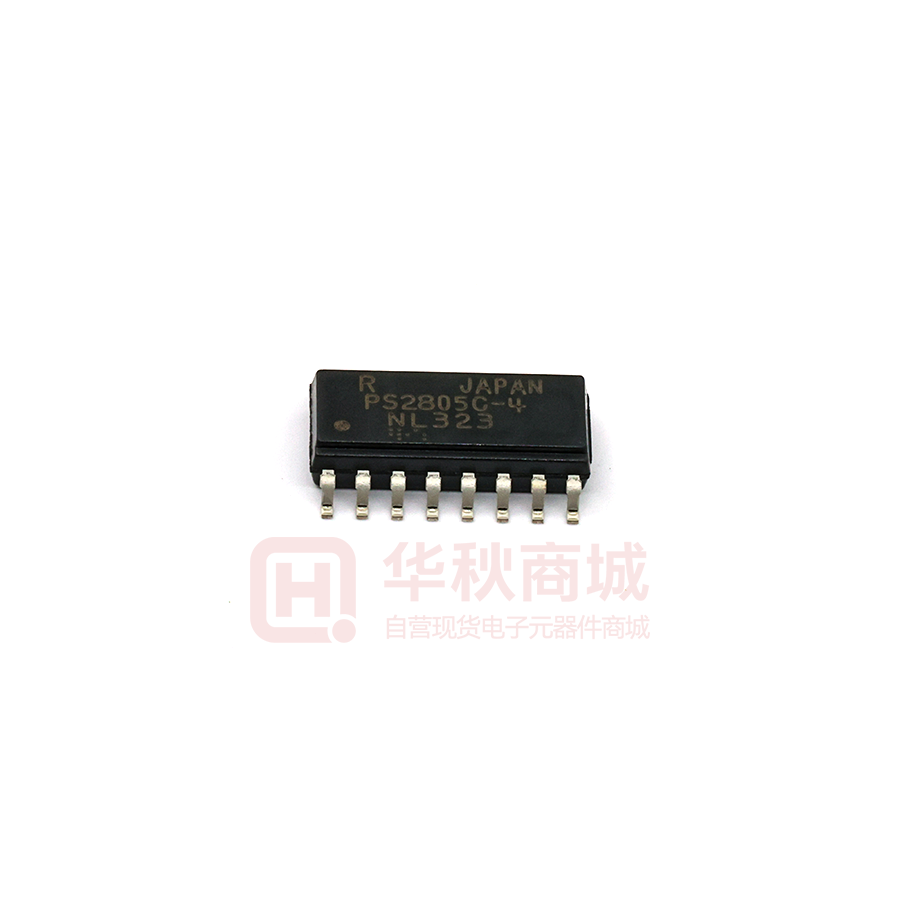

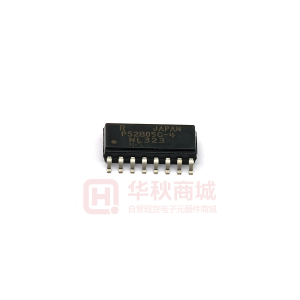

Images are for reference only
PS2805C-4-F3-A
- Mfr Part #PS2805C-4-F3-A
- ManufacturerRenesas
- HQ Part #UN0003543
- PackageOC16_10.3X4.4MM_SM
- Lead Time Ship immediately
Description80V 2500V 7us@2mA,100Ω 30mA -55℃~+100℃ 5us@2mA,100Ω 0.13V@2mA,10mA 4 1.2V Phototransistor AC,DC SOP-16-4.4mm Optocouplers - Phototransistor Output ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Number Of Circuit Groups (Number Of Channels) | 4Channel | |
| Input Terminal Type | AC/DC | |
| Type Of Output | NPN Phototransistor | |
| Power | 80mW | |
| Size | 10.30 x 4.40mm | |
| Installation Type | - | |
| Operating Temperature | -55°C~100°C | |
| Storage Temperature | -55~+150℃ | |
| Partlife Cycle | Active | |
| Country of Origin | Japan | |
| Original Manufacturer | Renesas Electronics America | |
| Brand | Renesas | |
| Isolation Voltage | 2.5KV | |
| Part Status | Active | |
| Forward Current | 30mA |
