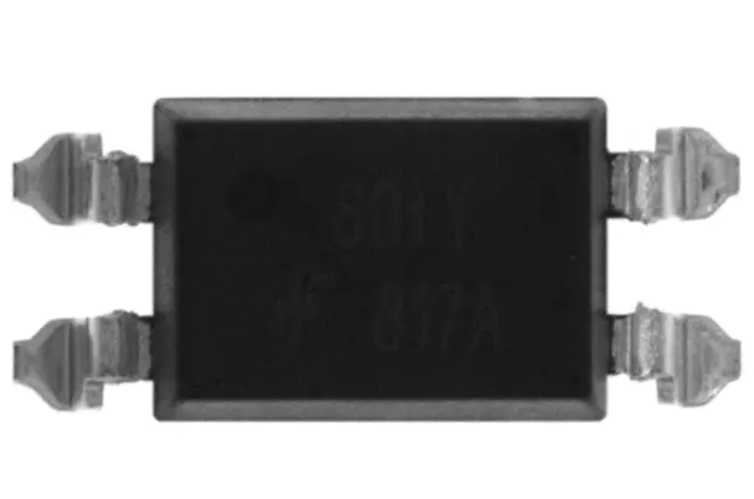

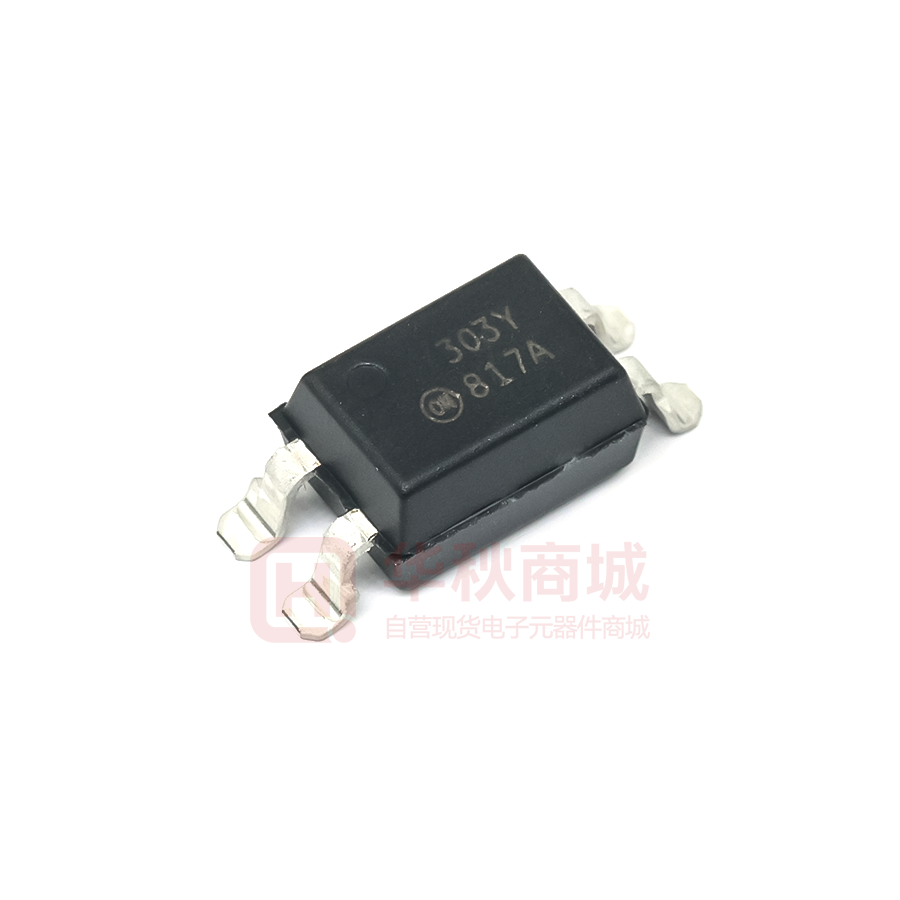

Images are for reference only

FOD817ASD

  • Mfr Part #FOD817ASD
  • ManufacturerON
  • HQ Part #IS0001639
  • PackageOC_4.6X6.5MM_SM
  • Lead Time Ship immediately
  • DescriptionPhotocouplers Viso=5KVrms VF(typ)=1.2V IF=50mA CTR=80~160% OC_4.6X6.5MM_SM

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Number Of Channels1Channel
Current Transmission Ratio160%
Input Terminal TypeDC
Power200mW
Size4.60 x 6.50mm
Installation Type-
Forward Voltage (Vf)1.2V
Operating Temperature-55°C~110°C
Package / CaseOC_4.6X6.5MM_SM
Lead Quantity4Pins
Storage Temperature-55~+125℃
Partlife CycleActive
Country of OriginAmerica
Original ManufacturerON Semiconductor Inc.
BrandOnsemi
Isolation Voltage5KV
Part StatusActive
Forward Current50mA
