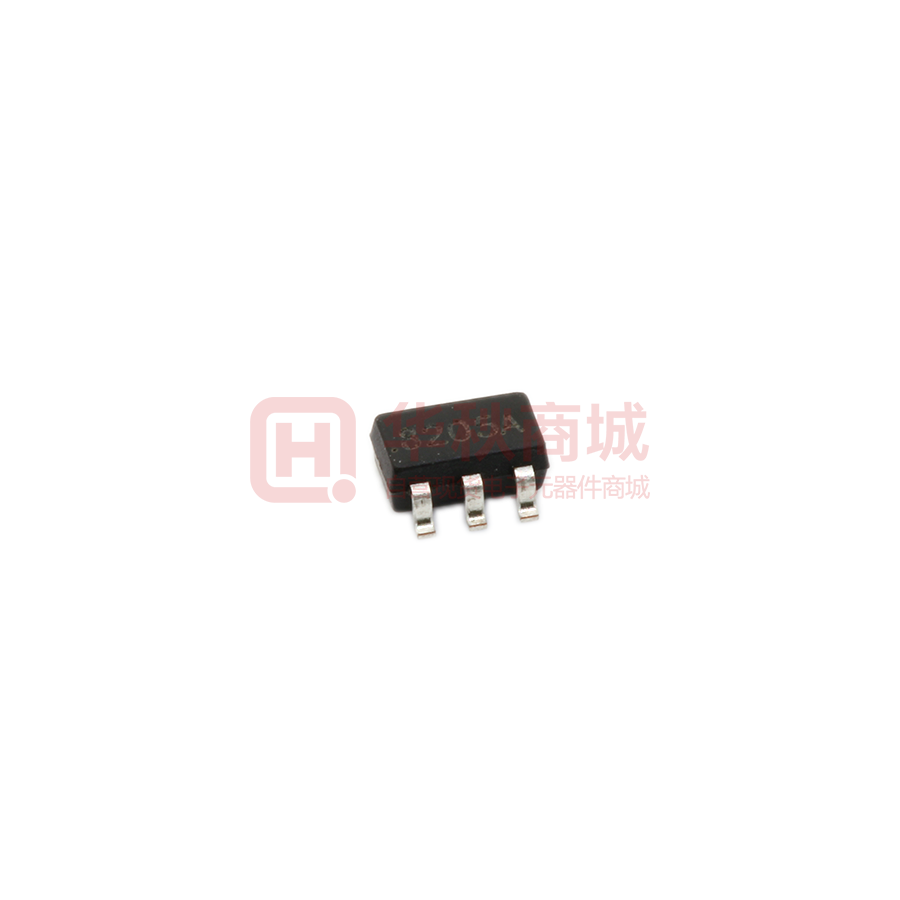

WST8205
- Mfr Part #WST8205
- ManufacturerWINSOK(微硕)
- HQ Part #DS0140022
- PackageSOT-23-6L
- Lead TimeShip in 4-7Days
DescriptionMOSFETs Dual N-Channel VDS=20V VGS=±12V ID=5.8A RDS(ON)=28mΩ@4.5V SOT23-6L
- Customer #
- Datasheet Datasheet
Product Attributes
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| To Configure | Single | |
| Continuous Drain Current | 5.8A | |
| Threshold Voltage | 700mV@250µA | |
| Vgs(Max) | ±12V | |
| Drain Current | 5.8A | |
| Drain Source Voltage (Vdss) | 20V | |
| Operating Temperature | -55℃~+150℃(TJ) | |
| Installation Type | SMT | |
| Transistor Type | 2 N-Channel(Dual) | |
| Package / Case | SOT23-6 | |
| Conduction Resistance (RDS (on) @ Vgs, Id) | 28mΩ@4.5V,5.5A | |
| Power Dissipation | 2.1W | |
| Power (Watts) | 2.1W | |
| Total Gate Charge | 8.3nC | |
| Reverse Transfer Capacitance | 61pF | |
| Breakdown voltage of grid and source | ±12V | |
| Breakdown Voltage | 20V | |
| Polarization | N-Channel | |
| Partlife Cycle | Active | |
| Storage Temperature | -55℃~+150℃ | |
| Lead Quantity | 6Pin | |
| Height | 1.25mm | |
| L x W/Size | 2.92 x 1.60mm | |
| Country of Origin | China | |
| Original Manufacturer | Winsok power Semiconductor CO., LTD | |
| Type | 1 N channel | |
| Input Capacitance Ciss | 625pF |
