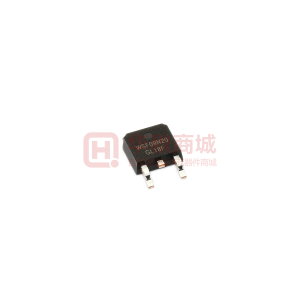

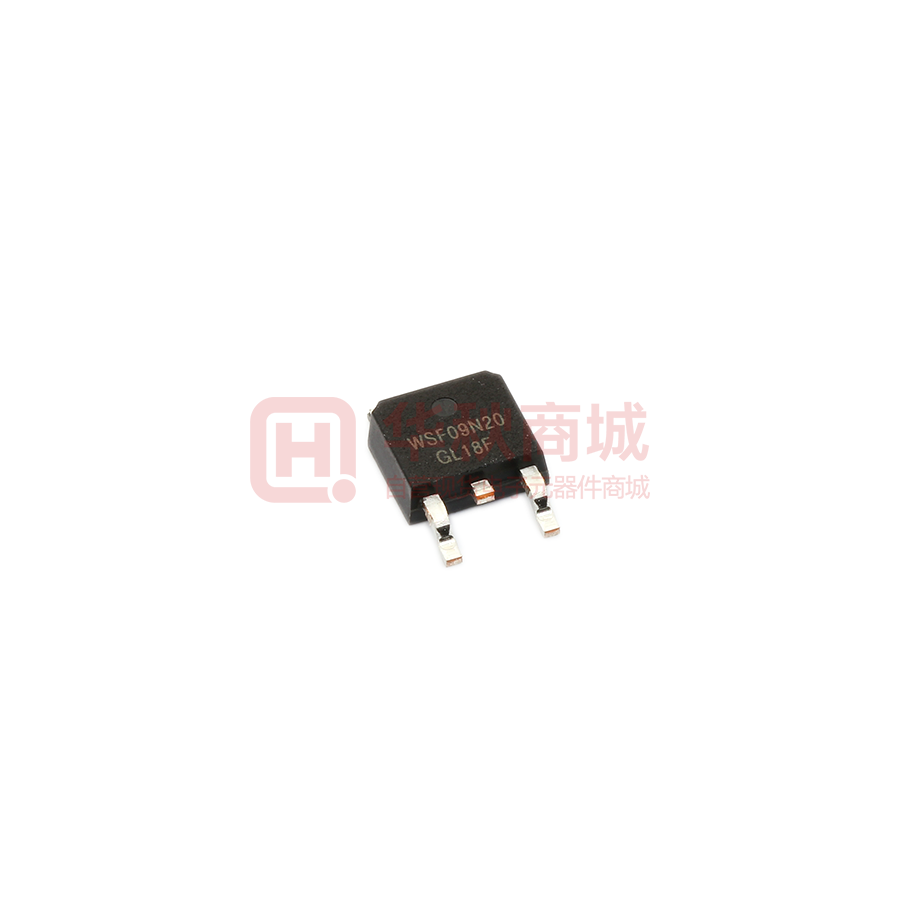

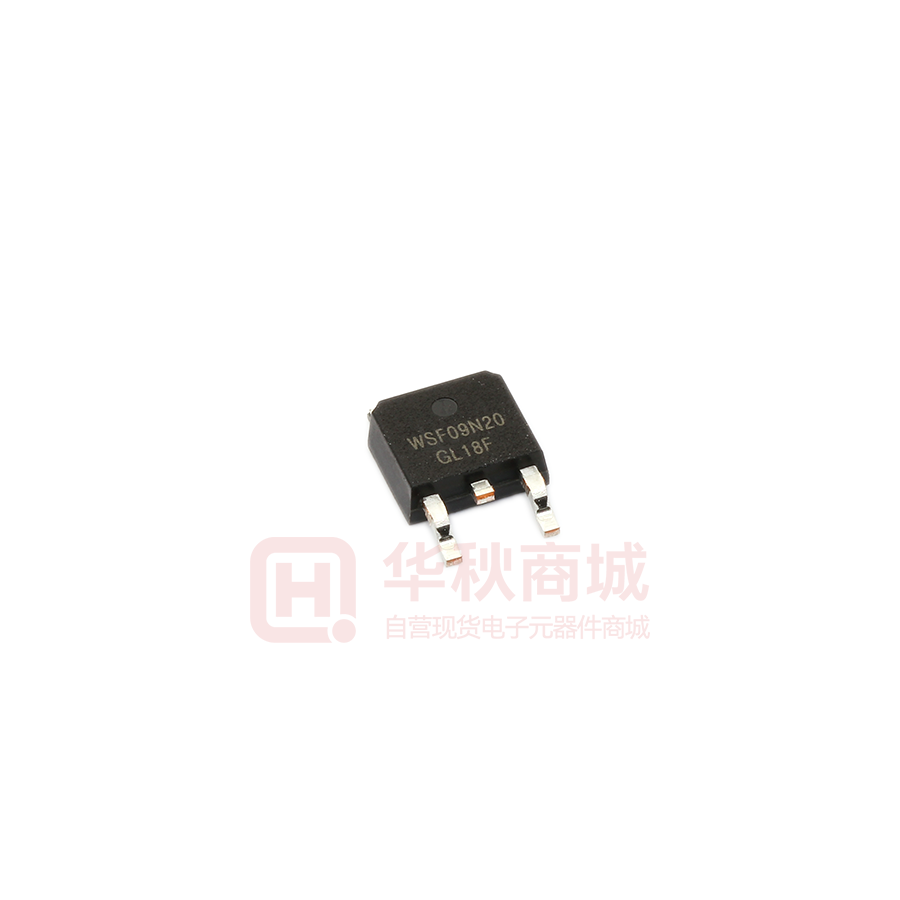

WSF09N20
- Mfr Part #WSF09N20
- ManufacturerWINSOK
- HQ Part #DS0139887
- PackageTO-252(DPAK)
- Lead Time Ship immediately
Description200V 9A 83W 250mΩ@10V,4.5A 2.5V@250uA N Channel TO-252-2(DPAK) MOSFETs ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| To Configure | Single | |
| Continuous Drain Current | 9A | |
| Threshold Voltage | 1.8V@250µA | |
| Drain Current | 9A | |
| Drain Source Voltage (Vdss) | 200V | |
| Operating Temperature | -55℃~+150℃ | |
| Installation Type | SMT | |
| Transistor Type | N-Channel | |
| Package / Case | TO-252(DPAK) | |
| Conduction Resistance (RDS (on) @ Vgs, Id) | 250mΩ@10V,4.5A | |
| Power Dissipation | 83W | |
| Power (Watts) | 83W | |
| Total Gate Charge | 11.8nC | |
| Reverse Transfer Capacitance | 3.2pF | |
| Breakdown voltage of grid and source | ±20V | |
| Breakdown Voltage | 200V | |
| Polarization | N-Channel | |
| Storage Temperature | -55℃~+150℃ | |
| Height | 2.40mm | |
| L x W/Size | 6.60 x 6.10mm | |
| Country of Origin | China | |
| Original Manufacturer | Winsok power Semiconductor CO., LTD | |
| Type | 1 N channel | |
| Input Capacitance Ciss | 509pF |
