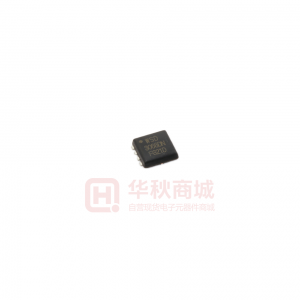

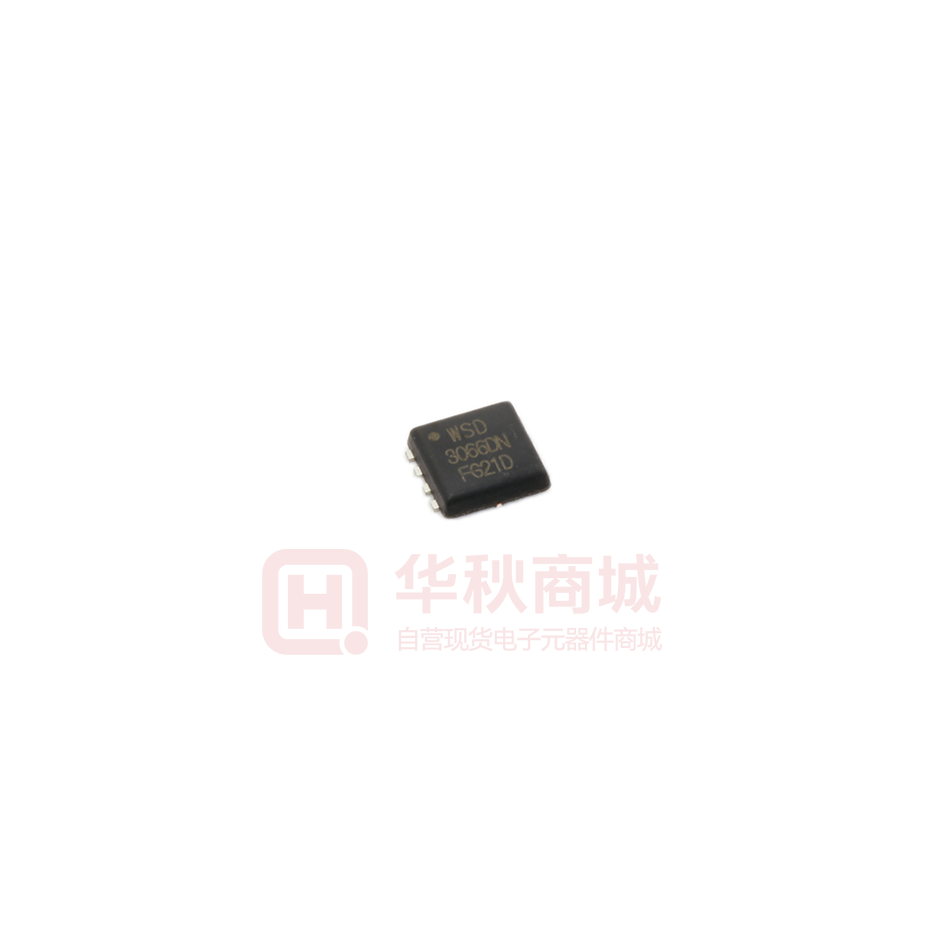

WSD3066DN
- Mfr Part #WSD3066DN
- ManufacturerWINSOK
- HQ Part #DS0139872
- PackageDFN-8(3x3)
- Lead Time Ship immediately
DescriptionMOS N-Channel VDS=30V VGS=±20V ID=66A RDS(ON)=5.7mΩ@10V
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| To Configure | Single | |
| Continuous Drain Current | 66A | |
| Threshold Voltage | 1.8V | |
| Vgs(Max) | ±20V | |
| Drain Current (Idss) | 66A | |
| Drain Source Voltage (Vdss) | 30V | |
| Operating Temperature | -55℃~+150℃ | |
| Installation Type | SMT | |
| Packing | Tape/reel | |
| Transistor Type | N-Channel | |
| Package / Case | DFN-8(3x3) | |
| Conduction Resistance (RDS (on) | 5.7mΩ | |
| Power Dissipation | 45W | |
| Total Gate Charge | 27.5nC | |
| Reverse Transfer Capacitance | 112pF | |
| Breakdown voltage of grid and source | ±20V | |
| Breakdown Voltage | 30V | |
| Polarization | N-Channel | |
| Partlife Cycle | Active | |
| Storage Temperature | -55℃~+150℃ | |
| Lead Quantity | 8Pin | |
| Height | 0.85mm | |
| L x W/Size | 3.00 x 3.00mm | |
| MPQ | 5000pcs | |
| Country of Origin | China | |
| Original Manufacturer | Winsok power Semiconductor CO., LTD | |
| Brand | WINSOK | |
| Input Capacitiance(Ci) | 1.32nF | |
| Part Status | Active |
