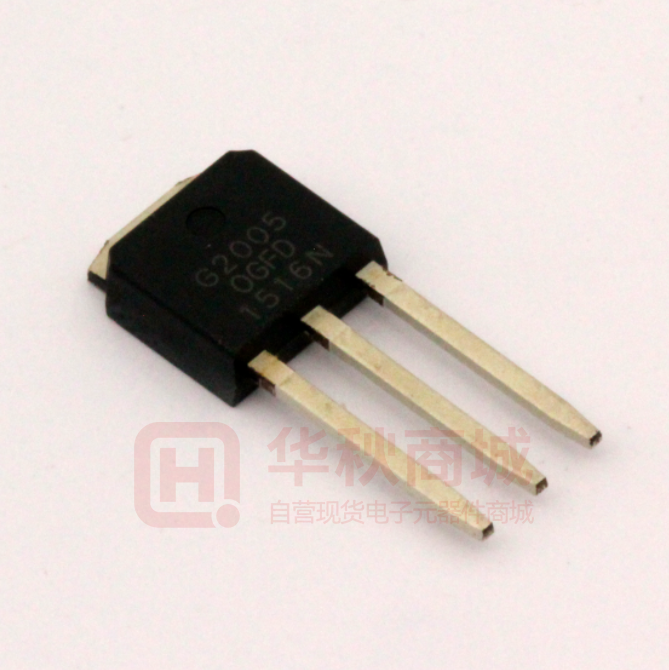

Images are for reference only
WSC5N20A
- Mfr Part #WSC5N20A
- ManufacturerWINSOK
- HQ Part #DS0139848
- PackageTO-251(IPAK)
- Lead Time Ship immediately
Description200V 5A 600mΩ@10V,30A 43W 2.5V@250uA N Channel TO-251(IPAK) MOSFETs ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Continuous Drain Current | 5A | |
| Threshold Voltage | 1.7V | |
| Vgs(Max) | ±20V | |
| Drain Current (Idss) | 5A | |
| Drain Source Voltage (Vdss) | 200V | |
| Operating Temperature | -55℃~+175℃ | |
| Installation Type | SMT | |
| Transistor Type | N-Channel | |
| Package / Case | TO-251(IPAK) | |
| Conduction Resistance (RDS (on) | 600mΩ@10V,30A | |
| Power Dissipation | 43W | |
| Reverse Transfer Capacitance | 15pF | |
| Breakdown voltage of grid and source | ±20V | |
| Breakdown Voltage | 200V | |
| Polarization | 1 N channel | |
| Lead Quantity | 3Pin | |
| Height | 7.50mm | |
| L x W/Size | 6.60 x 2.30mm | |
| Type | 1 N channel | |
| Input Capacitiance(Ci) | 300pF |
