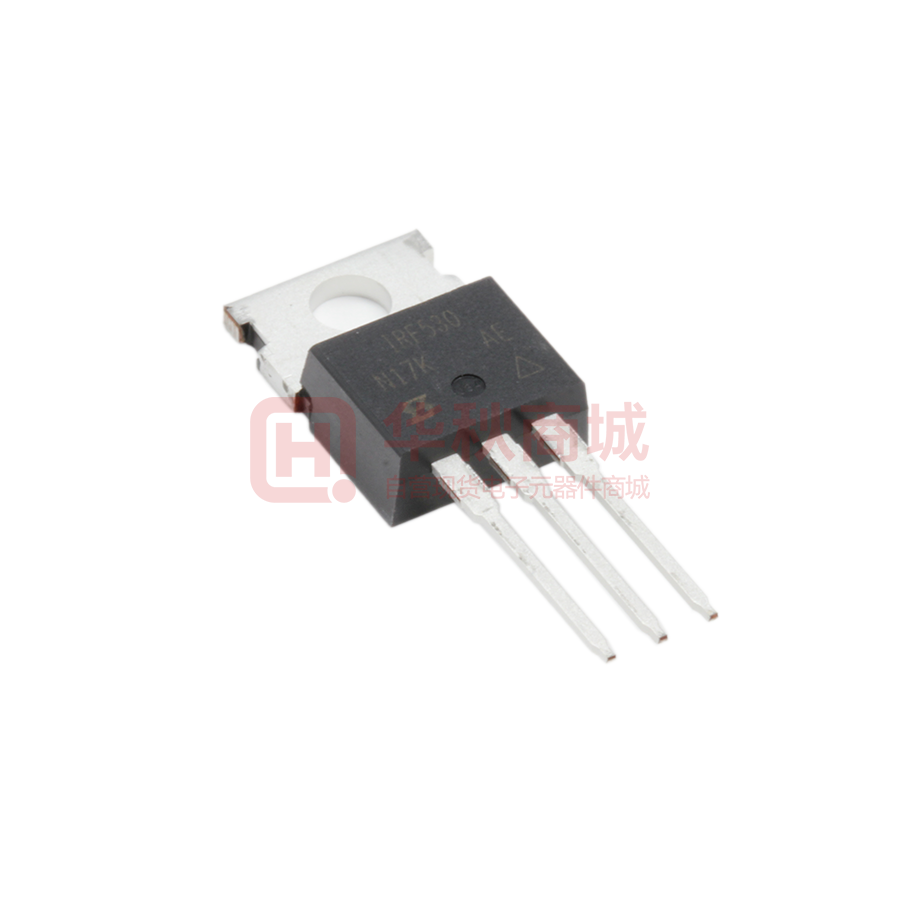

Images are for reference only
IRF530PBF
- Mfr Part #IRF530PBF
- ManufacturerVishay
- HQ Part #DS0076057
- PackageTO220AB
- Lead Time Ship immediately
Description100V 14A 88W 160mΩ@10V,8.4A 4V@250uA N Channel ITO-220AB-3 MOSFETs ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| To Configure | Single | |
| Continuous Drain Current | 14A | |
| Threshold Voltage | 4V@250µA | |
| Drain Current | 14A | |
| Drain Source Voltage (Vdss) | 100V | |
| Operating Temperature | -55~+175℃ | |
| Installation Type | DIP | |
| Transistor Type | - | |
| Package / Case | TO220AB | |
| Power Dissipation | 88W | |
| Total Gate Charge | 26nC | |
| Reverse Transfer Capacitance | 60pF | |
| Breakdown voltage of grid and source | ±20V | |
| Breakdown Voltage | 100V | |
| Polarization | N-Channel | |
| Partlife Cycle | Active | |
| Application Level | Consumer | |
| Storage Temperature | -55~+175℃ | |
| Lead Quantity | 3Pin | |
| Height | 18.74mm | |
| L x W/Size | 10.27 x 4.45mm | |
| Certification | RoHS, HF(halogen free), | |
| Country of Origin | America | |
| Original Manufacturer | Vishay Intertechnology, Inc. | |
| Brand | Vishay | |
| Application | Consumer | |
| Technology | MOSFET (Metal Oxide) | |
| Rdson (Maximum) For Different Ids And Vgs | - | |
| Moisture Sensitivity Level (MSL) | - | |
| Lead Free Or Not | Yes | |
| Part Status | Active |
