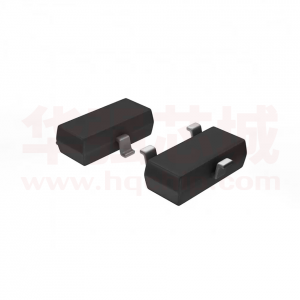

Images are for reference only

UMW AO3404A

  • Mfr Part #UMW AO3404A
  • ManufacturerUMW
  • HQ Part #DS0140418
  • PackageSOT-23
  • Lead Time Ship immediately
  • DescriptionN-Channel MOSFET

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
To ConfigureSingle
Continuous Drain Current5.8mA
Threshold Voltage1.9V@250µA
Drain Current5.8A
Drain Source Voltage (Vdss)30V
Operating Temperature+150℃
Installation Type-
Transistor Type-
Power Dissipation1.4W
Total Gate Charge13.88nC
Reverse Transfer Capacitance77pF
Breakdown voltage of grid and source±20V
Breakdown Voltage30V
PolarizationN-Channel
Storage Temperature-55~+150℃
Lead Quantity3Pin
Height1.05mm
L x W/Size3.00 x 1.40mm
CertificationRoHS
Printing CodeA49T
Country of OriginChina Taiwan
Original ManufacturerUMW
BrandUMW
Rdson (Maximum) For Different Ids And Vgs22.5mΩ
Lead Free Or NotYes
Part StatusActive
