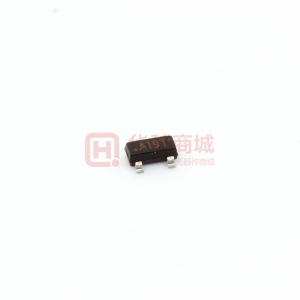

Images are for reference only

UMW AO3401A

  • Mfr Part #UMW AO3401A
  • ManufacturerUMW
  • HQ Part #DS0140404
  • PackageSOT-23
  • Lead Time Ship immediately
  • DescriptionMOSFETs SOT23 SMT 30V 4.2A

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
To ConfigureSingle
Continuous Drain Current4.2A
Continuous Drain Current4.2A
Threshold Voltage1.3V@250µA
Drain Current-4.2A
Drain Source Voltage (Vdss)30V
Drain Source Voltage (Vdss)30V
Operating Temperature+150℃
Installation TypeSMT
Installation Type-
Transistor Type-
Package / CaseSOT23
Power Dissipation1.4W
Forward Voltage VF Max1V
Total Gate Charge9.4nC
Reverse Transfer Capacitance77pF
Breakdown voltage of grid and source±12V
Breakdown Voltage30V
PolarizationP-channel
PolarizationP-channel
Storage Temperature-55~+150℃
Lead Quantity3Pin
Height1.05mm
L x W/Size3.00 x 1.40mm
L x W/Size3.00 x 1.40mm
CertificationRoHS
Country of OriginChina Taiwan
Original ManufacturerUMW
BrandUMW
BrandUMW
Rdson (Maximum) For Different Ids And Vgs50mΩ
Lead Free Or NotYes
Part StatusActive
Terms of Service
ShippingDelivery Period For stock parts, orders placed on HQonline from 8:00-16:00 will be dispatched on the same day
Once shipped, the transit time depends on the logistics provider you choose:
DHL Express, 3-5 days
FedEx International, 3-5 days
China Post Airmail, 15-45 days
Shipping RateShipping rate for your order can be found in the shopping cart.
Shipping OptionWe provide DHL, FedEx, and China Post Airmail shipping.
Shipping TrackingWe will notify you by email with a tracking number once the order is shipped. You can also find the tracking number in the order history.
Returning/WarrantyReturning HQonline only accepts return requests due to quality issues. Return requests should be submitted within 30 days of delivery of the goods, please contact customer service for a return authorization.
Parts should be unused and in original packaging.
The customer has to take charge of the shipping.
Warranty All HQonline purchases come with a 30-day money-back return policy, plus a 90-day HQonline warranty against any manufacturing defects.
This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by the customer to follow instructions, product modification, negligent or improper operation.
OrderingHow to Buy HQonline accepts online orders.
Add to cart > Check out > Submit order > Complete payment >Delivery
Payment PayPal, Payoneer, Credit Card includes Visa, Master, American Express, JCB, Discover.
Western Union, Bank Transfer, Payoneer, AliExpress.
58 In Stock
Qty
Minimum20 Mutiple20
Unit Price$ 0.0557
Ext Price$ 0
Add to Cart
Buy Now
Pricing (USD)
QtyUnit PriceExt Price
20+$0.01832 $0.36640
200+$0.01703 $3.40600
600+$0.01574 $9.44400
3000+$0.01445 $43.35000
