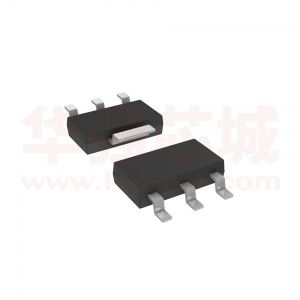

Images are for reference only

UMW 1N60G

  • Mfr Part #UMW 1N60G
  • ManufacturerUMW
  • HQ Part #DS0140396
  • PackageSOT223-3
  • Lead Time Ship immediately
  • DescriptionN-CHANNEL POWER MOSFET

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
To ConfigureSingle
Continuous Drain Current1A
Threshold Voltage4V@250µA
Drain Current1A
Drain Source Voltage (Vdss)600V
Operating Temperature+150℃
Installation Type-
Transistor Type-
Power Dissipation-
Forward Voltage VF Max1.4V
Total Gate Charge4.8nC
Reverse Transfer Capacitance5.4pF
Breakdown voltage of grid and source±30V
Breakdown Voltage600V
PolarizationN-Channel
Partlife CycleActive
Storage Temperature-55~+150℃
Lead Quantity4Pin
Height1.60mm
L x W/Size6.50 x 3.50mm
CertificationRoHS
Country of OriginChina Taiwan
Original ManufacturerUMW
BrandUMW
Rdson (Maximum) For Different Ids And Vgs8.5Ω
Lead Free Or NotYes
Part StatusActive
