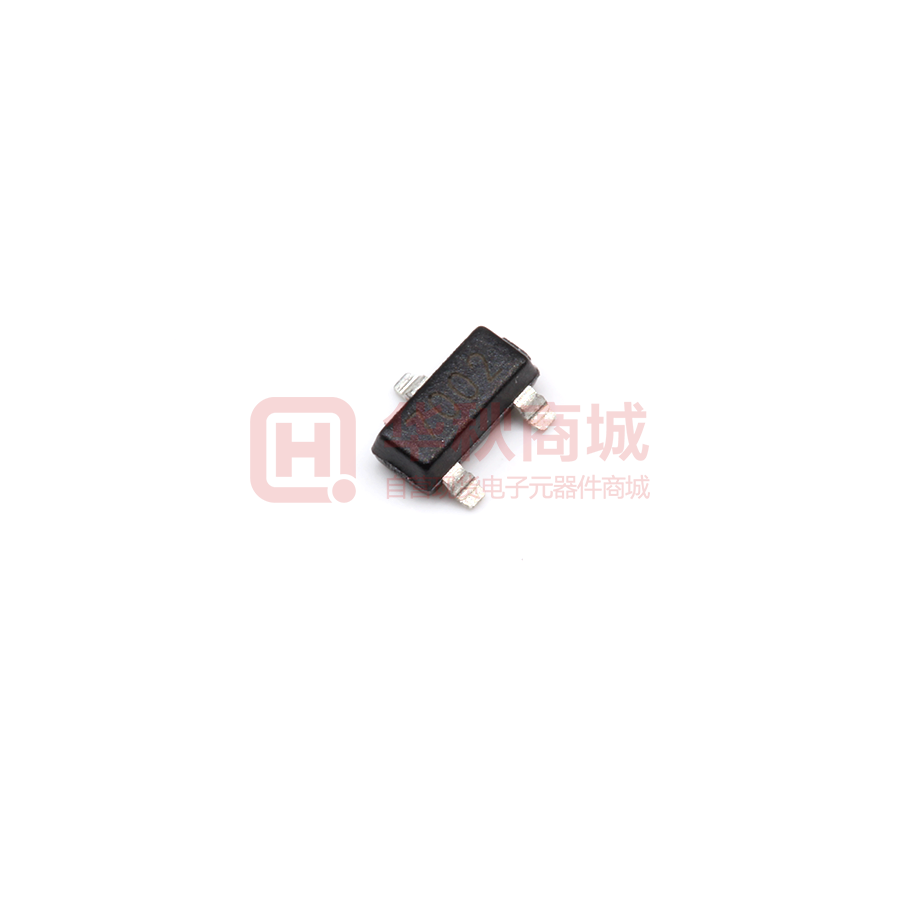

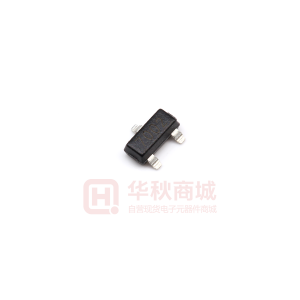

Images are for reference only

2N7002

  • Mfr Part #2N7002
  • ManufacturerTWGMC
  • HQ Part #DS0143081
  • PackageSOT-23
  • Lead Time Ship immediately
  • DescriptionSOT-23 MOSFETs ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Continuous Drain Current115mA
Threshold Voltage2.1V
Drain Current1µA
Drain Source Voltage (Vdss)60V
Operating Temperature-55~+150℃
Installation Type-
Transistor Type-
Power Dissipation200mW
Power (Watts)200mW
Total Gate ChargeOriginalnC
Breakdown voltage of grid and source±20V
PolarizationN-Channel
Partlife CycleActive
Storage Temperature-55~+150℃
Lead Quantity3Pin
Height1.40mm
L x W/Size3.10 x 1.65mm
Country of OriginChina Taiwan
Original ManufacturerTwgmc Electronics Co., Ltd.
BrandTWGMC
Rdson (Maximum) For Different Ids And Vgs7.5Ω
Lead Free Or NotNo
Part StatusActive
