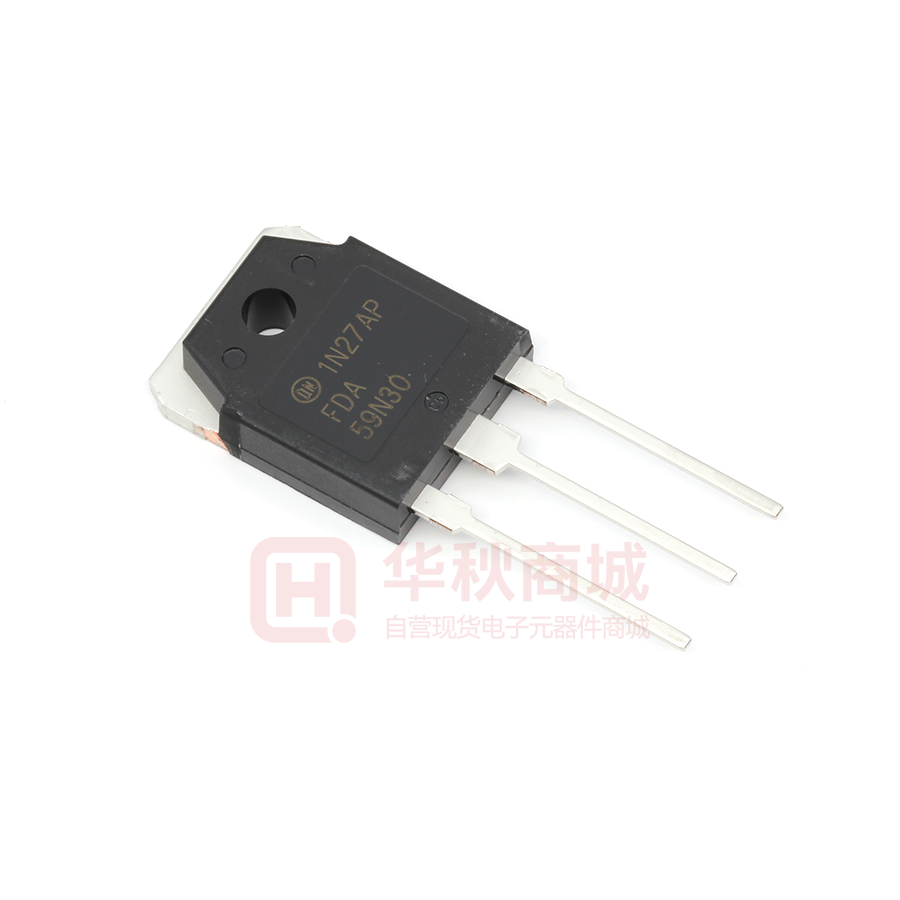

FDA59N30
- Mfr Part #FDA59N30
- ManufacturerON
- HQ Part #DS0076422
- PackageTO3PN
- Lead Time Ship immediately
Description300V 59A 500W 56mΩ@10V,29.5A 5V@250uA N Channel TO-3PN MOSFETs ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| To Configure | Single | |
| Continuous Drain Current | 59A | |
| Threshold Voltage | 5V | |
| Vgs(Max) | ±30V | |
| Drain Source Voltage (Vdss) | 300V | |
| Operating Temperature | -55℃~+150℃ | |
| Installation Type | DIP | |
| Transistor Type | N-Channel | |
| Package / Case | TO3PN | |
| Conduction Resistance (RDS (on) | 56mΩ@10V,29.5A | |
| Power Dissipation | 500W | |
| Total Gate Charge | 77nC | |
| Reverse Transfer Capacitance | 80pF | |
| Breakdown voltage of grid and source | ±30V | |
| Breakdown Voltage | 300V | |
| Polarization | N-Channel | |
| Partlife Cycle | Active | |
| Storage Temperature | -55℃~+150℃ | |
| Lead Quantity | 3Pin | |
| Height | 23.80mm | |
| L x W/Size | 16.20 x 5.00mm | |
| Certification | RoHS | |
| Printing Code | FDA59N30 | |
| Country of Origin | America | |
| Original Manufacturer | ON Semiconductor | |
| Type | 1 N channel | |
| Input Capacitiance(Ci) | 4.67nF@25V | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Lead Free Or Not | Yes | |
| Series | UniFET™ | |
| Part Status | Active |
