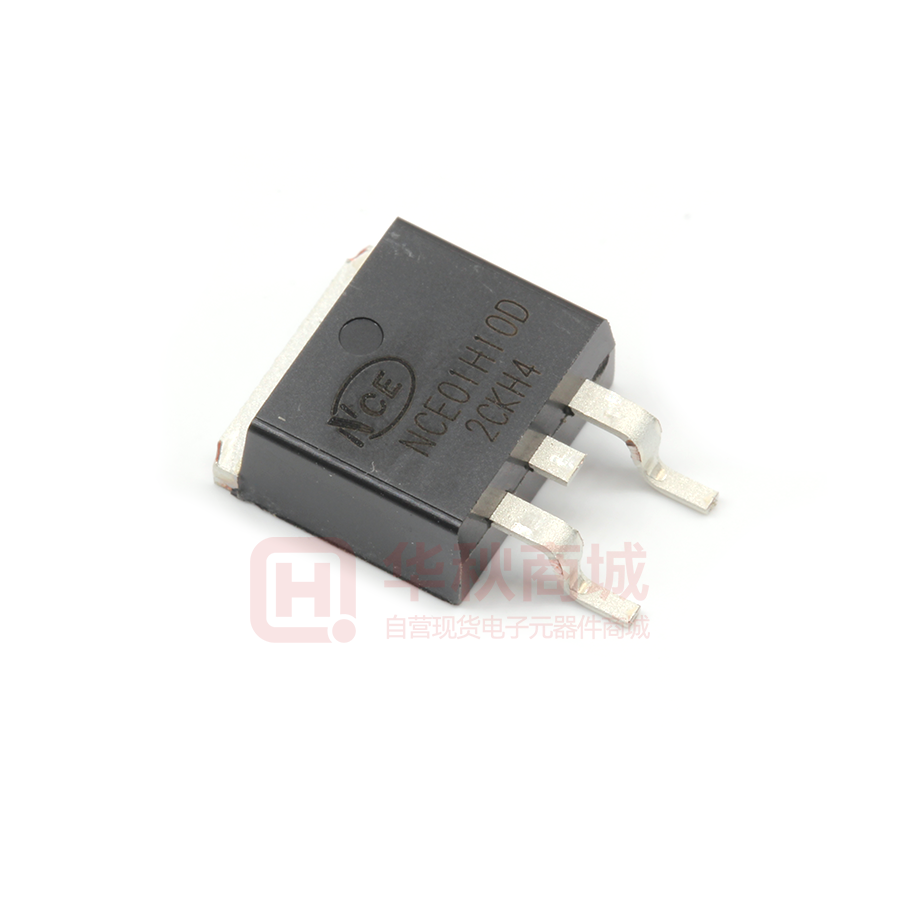

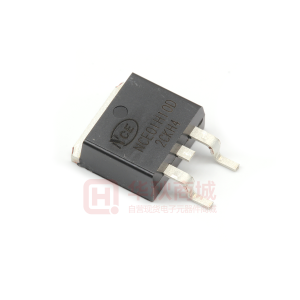

Images are for reference only
NCE01H10D
- Mfr Part #NCE01H10D
- ManufacturerNCE
- HQ Part #DS0142006
- PackageTO-263(D²Pak)
- Lead Time Ship immediately
DescriptionN-channel drain source voltage (Vdss): 100V continuous drain current (Id): 100A power (Pd): 200W
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| To Configure | Single | |
| Continuous Drain Current | 100A | |
| Grid Charge (Qg) | 85nC | |
| Threshold Voltage | 3V | |
| Vgs(Max) | ±20V | |
| Drain Source Voltage (Vdss) | 100V | |
| Operating Temperature | -55℃~+175℃ | |
| Installation Type | SMT | |
| Transistor Type | N-Channel | |
| Package / Case | TO-263(D²Pak) | |
| Conduction Resistance (RDS (on) | 9.9mΩ@10V,15A | |
| Power Dissipation | 200W | |
| Total Gate Charge | 85nC | |
| Reverse Transfer Capacitance | 150pF | |
| Breakdown voltage of grid and source | ±20V | |
| Breakdown Voltage | 100V | |
| Polarization | N-Channel | |
| Partlife Cycle | Active | |
| Storage Temperature | -55℃~+175℃ | |
| Lead Quantity | 2Pin | |
| Height | 4.67mm | |
| L x W/Size | 10.31 x 8.90mm | |
| Country of Origin | China | |
| Original Manufacturer | WUXI NCE POWER CO., Ltd. | |
| Type | 1 N channel | |
| Input Capacitiance(Ci) | 4.8nF | |
| Part Status | Active |
