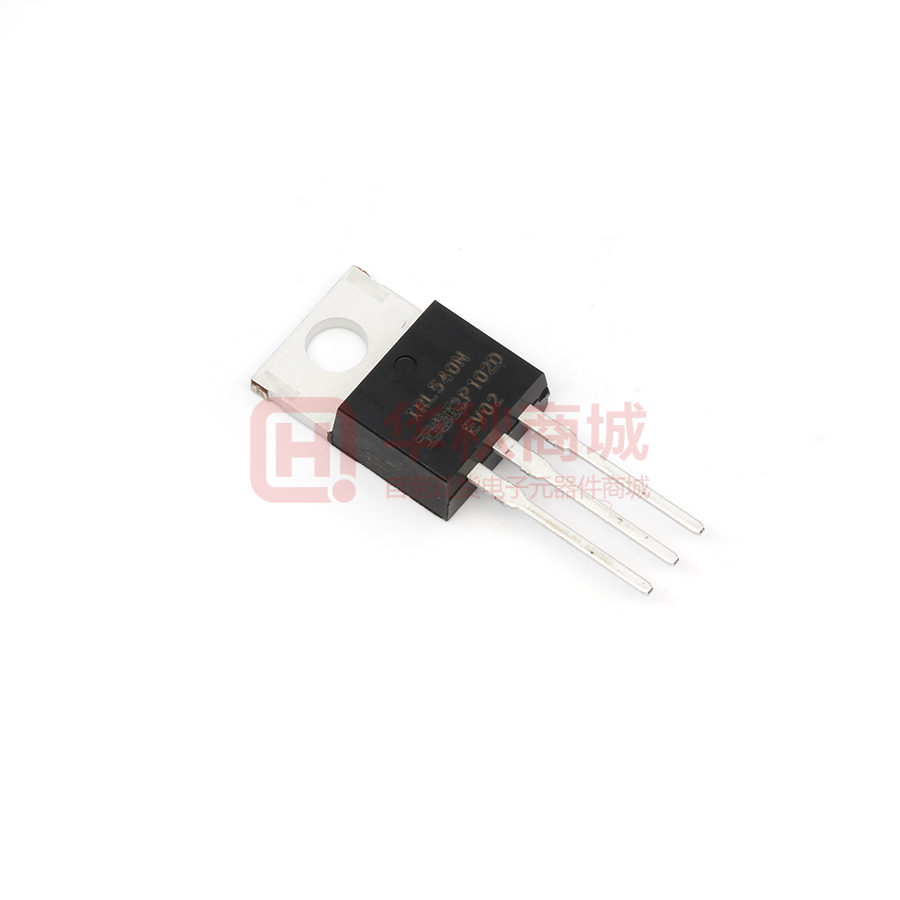

IRL540NPBF

  • Mfr Part #IRL540NPBF
  • ManufacturerInfineon
  • HQ Part #DS0083792
  • PackageTO220AB
  • Lead Time Ship immediately
  • DescriptionMOSFETs N-Channel VDS=100V ID=36A TO220AB

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
To ConfigureSingle
Continuous Drain Current36A
Threshold Voltage2V
Drain Source Voltage (Vdss)100V
Operating Temperature-55~+175℃
Installation TypeDIP
Transistor Type-
Package / CaseTO220AB
Power Dissipation140W
Total Gate Charge74nC
Breakdown voltage of grid and source±16V
Breakdown Voltage100V
PolarizationN-Channel
Partlife CycleActive
Lead Quantity3Pin
Height19.30mm
L x W/Size10.54 x 4.69mm
Country of OriginGermany
Original ManufacturerInfineon Technologies AG
BrandInfineon
Technology-
Rdson (Maximum) For Different Ids And Vgs-
Moisture Sensitivity Level (MSL)-
Lead Free Or NotYes
SeriesHEXFET®
Part StatusActive
