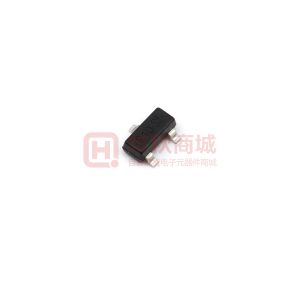

Images are for reference only
DMP10H4D2S-7
- Mfr Part #DMP10H4D2S-7
- ManufacturerDIODES
- HQ Part #DS0075275
- PackageSOT-23
- Lead Time Ship immediately
Description100V 270mA 380mW 4.2Ω@10V,500mA 3V@250uA P Channel SOT-23 MOSFETs ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| To Configure | Single | |
| Continuous Drain Current | 270mA | |
| Grid Charge (Qg) | 1.8nC | |
| Threshold Voltage | 3V | |
| Drain Source Voltage (Vdss) | 100V | |
| Operating Temperature | -55℃~+150℃ | |
| Installation Type | SMT | |
| Transistor Type | P-Channel | |
| Package / Case | SOT-23 | |
| Conduction Resistance (RDS (on) @ Vgs, Id) | 4.2Ω@10V,500mA | |
| Power Dissipation | 380mW | |
| Power (Watts) | 380mW | |
| Total Gate Charge | 1.8nC | |
| Reverse Transfer Capacitance | 15.3pF | |
| Breakdown voltage of grid and source | ±20V | |
| Polarization | P-Channel | |
| Partlife Cycle | Active | |
| Lead Quantity | 3Pin | |
| Height | 1.00mm | |
| L x W/Size | 2.90 x 1.30mm | |
| Country of Origin | America | |
| Original Manufacturer | Diodes Incorporated | |
| Type | 1 P channel | |
| Input Capacitance Ciss | 87pF | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Lead Free Or Not | Yes | |
| Series | - | |
| Part Status | Active |
