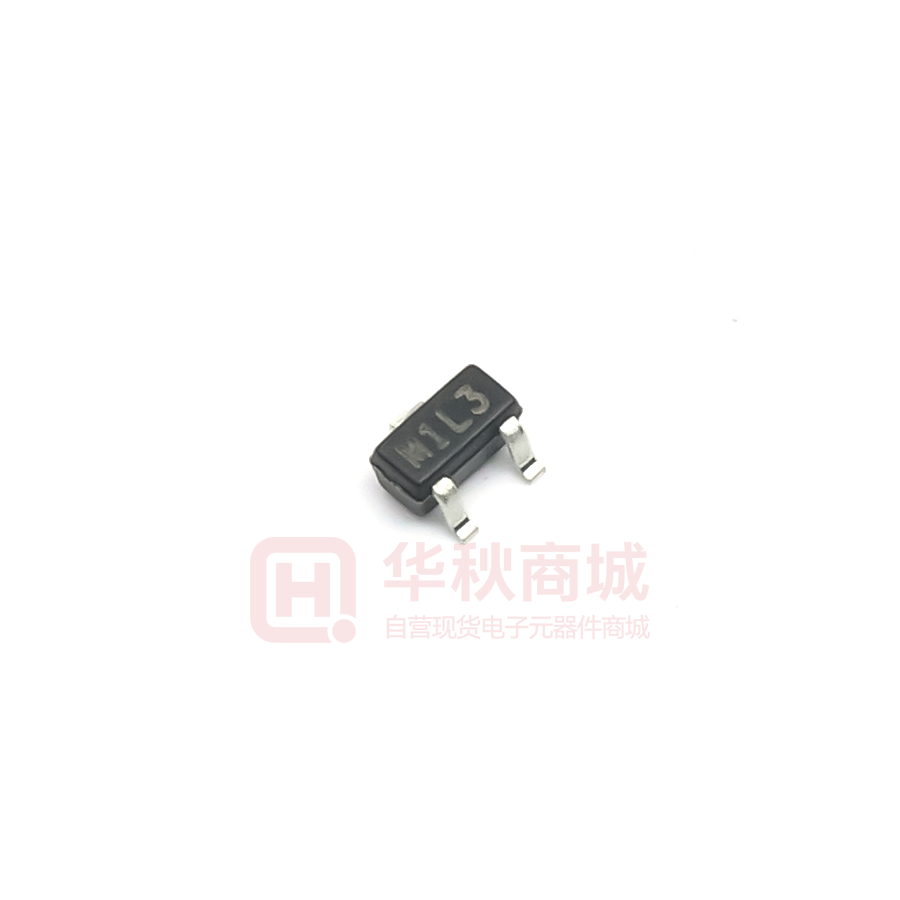

RestockingImages are for reference only
MOSFETs DIODES DMN26D0UT-7
- Mfr Part #DMN26D0UT-7
- ManufacturerDIODES
- HQ Part #DS0083685
- PackageSOT523
- Lead Time Ship immediately
DescriptionMOSFETs N-Channel VDS=20V ID=230mA SOT523
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Continuous Drain Current Id@25 ℃ | 230mA | |
| Grid Charge (Qg) (Max) | - | |
| Threshold Voltage Vgs (Th) | 1V | |
| Drain Current Idss | 230mA | |
| On Resistance Rds On (Max) | 3Ω | |
| Drain Source Voltage (Vdss) | 20V | |
| Operating Temperature | -55~+150℃ | |
| Installation Type | - | |
| Packing | Tape/reel | |
| Transistor Type | - | |
| Power (Max) | 300mW | |
| Supplier Device Packaging | SOT-523 | |
| Package / Case | SOT523 | |
| Drain-source on-resistance RDS(on) | 3Ω | |
| Power Dissipation | 300mW | |
| Power (Watts) | 300mW | |
| Reverse Transfer Capacitance | 1.6pF | |
| Breakdown voltage of grid and source | ±10V | |
| Polarization | N-Channel | |
| Partlife Cycle | Active | |
| Height | 0.80mm | |
| L x W/Size | 1.60 x 0.80mm | |
| MPQ | 3000pcs | |
| Country of Origin | America | |
| Original Manufacturer | Diodes Incorporated | |
| Brand | DIODES | |
| Input Capacitance Ciss | 14.1pF | |
| Technology | - | |
| Drive Voltage (Maximum Rdson, Minimum Rdson) | 1.2V，4.5V | |
| Rdson (Maximum) For Different Ids And Vgs | - | |
| Drain Source Voltage (Vdss) | 20V | |
| Moisture Sensitivity Level (Msl) | - | |
| Lead Free Or Not | Yes | |
| Manufacturer'S Standard Lead Time | - | |
| Part Status | Active |
