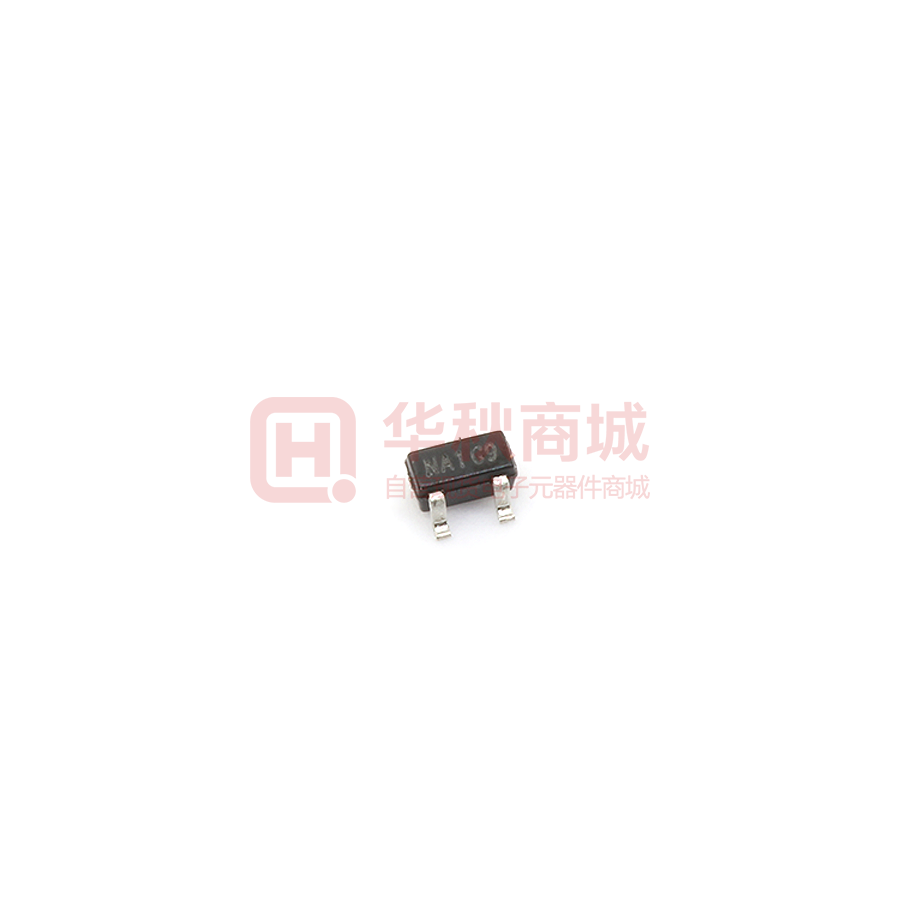

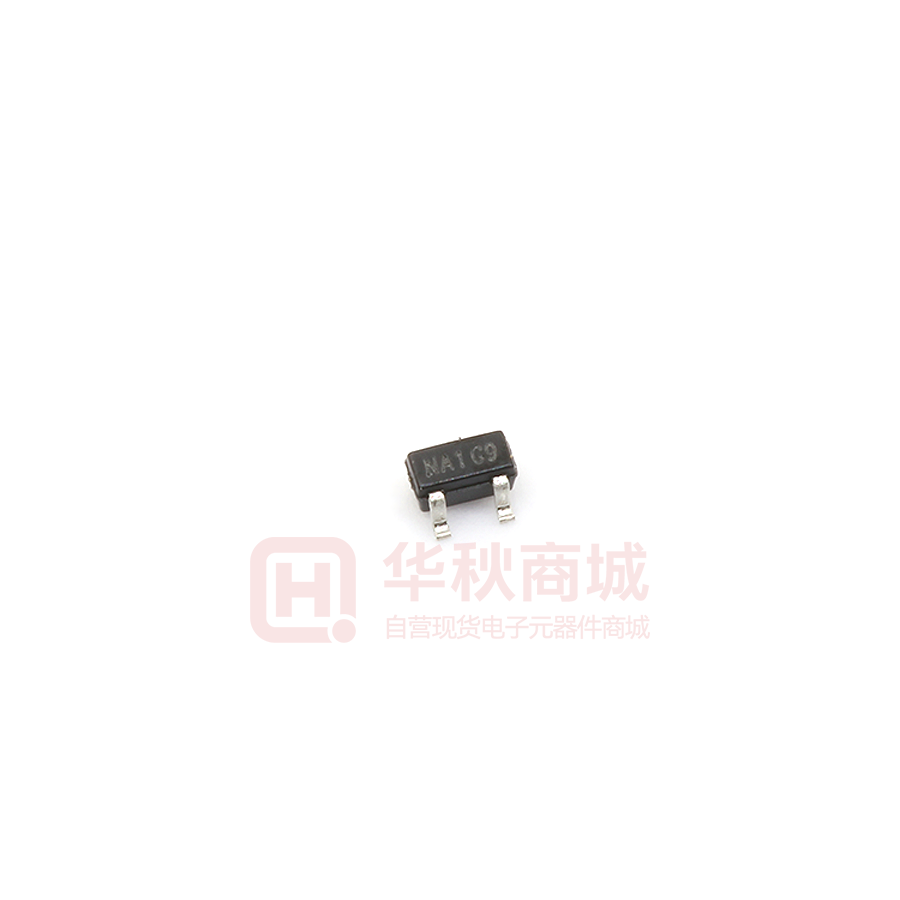

Images are for reference only

DMG1012T-7

  • Mfr Part #DMG1012T-7
  • ManufacturerDIODES
  • HQ Part #DS0078724
  • PackageSOT-523-3
  • Lead Time Ship immediately
  • Description20V 630mA 400mΩ@4.5V,600mA 280mW 1V@250uA N Channel SOT-523-3 MOSFETs ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Continuous Drain Current630mA
Grid Charge (Qg)0.74nC
Threshold Voltage1V
Drain Current630mA
Drain Source Voltage (Vdss)20V
Operating Temperature-55~+150℃(TJ)
Installation Type-
Transistor Type-
Power Dissipation280mW
Power (Watts)280mW
Total Gate Charge0.74nC
Breakdown voltage of grid and source±6V
Breakdown Voltage20V
PolarizationN-Channel
Partlife CycleActive
Lead Quantity3Pin
Height0.75mm
L x W/Size1.60 x 0.80mm
Country of OriginAmerica
Original ManufacturerDiodes Incorporated
BrandDIODES
Input Capacitance Ciss60.67pF
Technical RouteMOSFET (Metal Oxide)
Rdson (Maximum) For Different Ids And Vgs-
Moisture Sensitivity Level (MSL)-
Lead Free Or NotYes
Part StatusActive
Terms of Service
ShippingDelivery Period For stock parts, orders placed on HQ Online from 8:00-16:00 will be dispatched on the same day
Once shipped, the transit time depends on the logistics provider you choose:
DHL Express, 3-5 days
FedEx International, 3-5 days
China Post Airmail, 15-45 days
Shipping RateShipping rate for your order can be found in the shopping cart.
Shipping OptionWe provide DHL, FedEx, and China Post Airmail shipping.
Shipping TrackingWe will notify you by email with a tracking number once the order is shipped. You can also find the tracking number in the order history.
Returning/WarrantyReturning HQ Online only accepts return requests due to quality issues. Return requests should be submitted within 30 days of delivery of the goods, please contact customer service for a return authorization.
Parts should be unused and in original packaging.
The customer has to take charge of the shipping.
Warranty All HQ Online purchases come with a 30-day money-back return policy, plus a 90-day HQ Online warranty against any manufacturing defects.
This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by the customer to follow instructions, product modification, negligent or improper operation.
OrderingHow to Buy HQ Online accepts online orders.
Add to cart > Check out > Submit order > Complete payment >Delivery
Payment PayPal, Payoneer, Credit Card includes Visa, Master, American Express, JCB, Discover.
Western Union, Bank Transfer, Payoneer, AliExpress.
3,341 In Stock
Qty
Minimum1 Mutiple1
Unit Price$ 0.0557
Ext Price$ 0
Add to Cart
Buy Now
Pricing (USD)
QtyUnit PriceExt Price
1+$0.02050 $0.02050
30+$0.01977 $0.59310
100+$0.01831 $1.83100
500+$0.01684 $8.42000
1000+$0.01611 $16.11000
