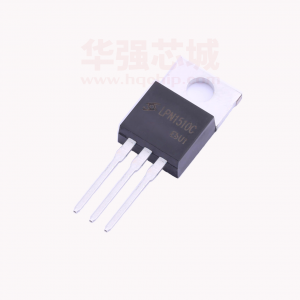

Images are for reference only
LPN1510C
- Mfr Part #LPN1510C
- ManufacturerCHIP HOPE
- HQ Part #DS0137568
- PackageTO-220-3
- Lead Time Ship immediately
DescriptionN-Channel VDS=100V VGS=±20V ID=55A P=300W
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| To Configure | Single | |
| Continuous Drain Current | 55A | |
| Threshold Voltage | 2.5V | |
| Drain Current | 55A | |
| Drain Source Voltage (Vdss) | 100V | |
| Operating Temperature | -55~+150℃ | |
| Installation Type | DIP | |
| Transistor Type | - | |
| Power Dissipation | 300W | |
| Total Gate Charge | 34.4nC | |
| Reverse Transfer Capacitance | 9.6pF | |
| Breakdown voltage of grid and source | ±20V | |
| Breakdown Voltage | 100V | |
| Halide Free | Yes | |
| Polarization | N-Channel | |
| Partlife Cycle | Active | |
| Storage Temperature | -55~+150℃ | |
| Height | 15.60mm | |
| L x W/Size | 10.00 x 4.57mm | |
| Country of Origin | China | |
| Original Manufacturer | Shenzhen Chip Hope Micro-Electronics Co., Ltd | |
| Brand | Chip Hope | |
| Input Capacitance Ciss | 2145.8pF | |
| Rdson (Maximum) For Different Ids And Vgs | 11mΩ | |
| Lead Free Or Not | Yes |
