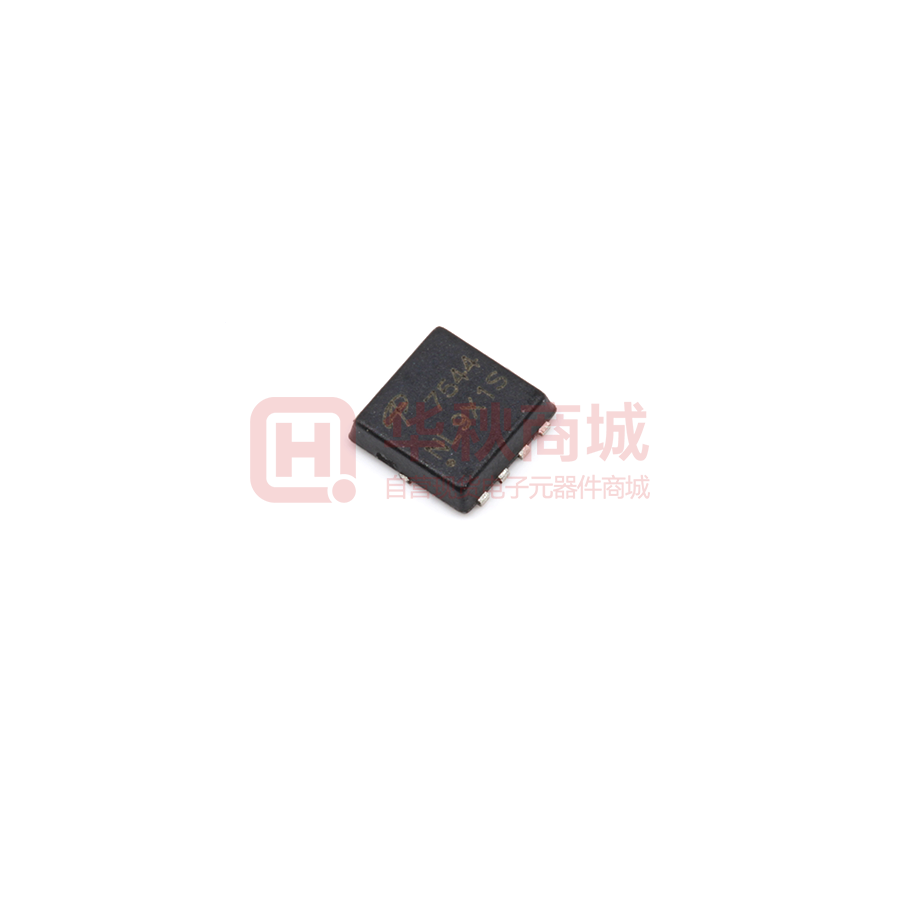

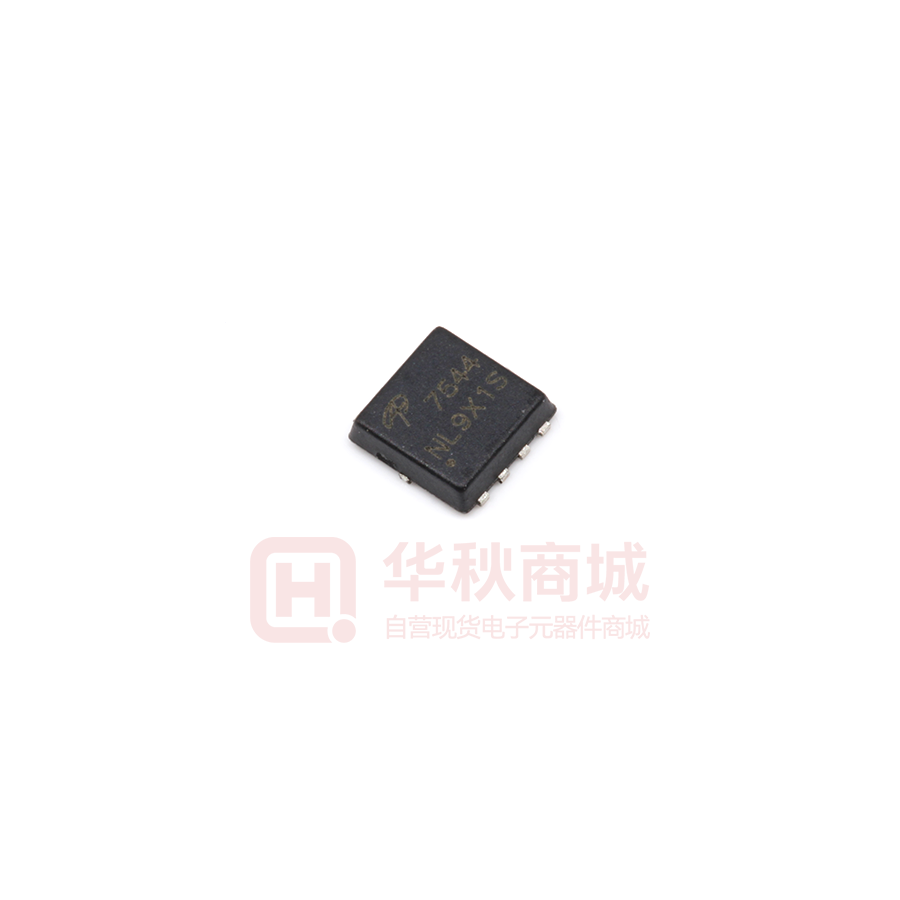

AON7544
- Mfr Part #AON7544
- ManufacturerAOS
- HQ Part #DS0142086
- PackageDFN8_3X3MM_EP
- Lead Time Ship immediately
DescriptionN-Channel AlphaMOS VDS=30V VGS=±20V ID=30A DFN3X3_EP
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| To Configure | Single | |
| Continuous Drain Current | 30A | |
| Grid Charge (Qg) | 22.5nC | |
| Threshold Voltage | 2.2V@250μA | |
| Drain Source Voltage (Vdss) | 30V | |
| Operating Temperature | -55℃~+150℃(TJ) | |
| Installation Type | SMT | |
| Transistor Type | N-Channel | |
| Package / Case | DFN8_3X3MM_EP | |
| Conduction Resistance (RDS (on) @ Vgs, Id) | 5mΩ@10V,20A | |
| Power Dissipation | 23W | |
| Power (Watts) | 23W | |
| Total Gate Charge | 15.7nC | |
| Reverse Transfer Capacitance | 62pF | |
| Breakdown voltage of grid and source | ±20V | |
| Breakdown Voltage | 30V | |
| Polarization | N-Channel | |
| Lead Quantity | 8Pin | |
| Height | 0.80mm | |
| L x W/Size | 3.00 x 3.00mm | |
| Country of Origin | America | |
| Original Manufacturer | Alpha & Omega Semiconductor Inc. | |
| Type | 1 N channel | |
| Input Capacitance Ciss | 951pF |
