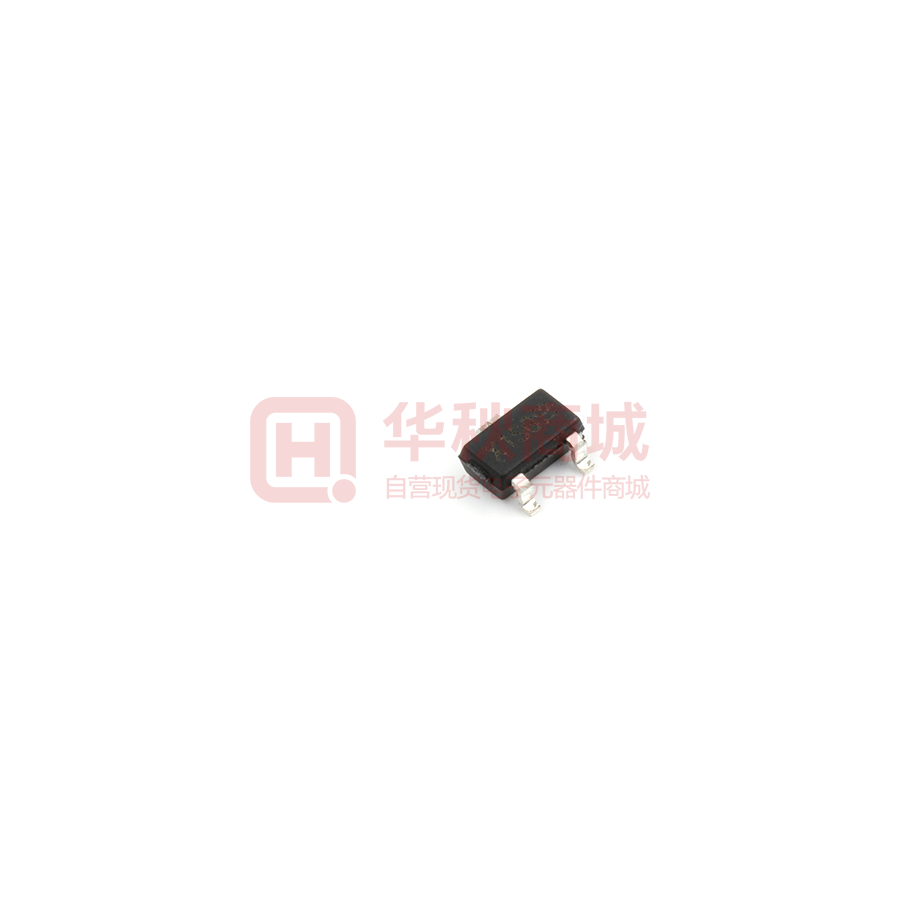

Images are for reference only
AO3401A
- Mfr Part #AO3401A
- ManufacturerAOS
- HQ Part #DS0074260
- PackageSOT-23
- Lead Time Ship immediately
DescriptionMOSFETs 30V 2.90 x 1.60mm SMT SOT23 3.2A
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| To Configure | Single | |
| Continuous Drain Current | 3.2A | |
| Grid Charge (Qg) | 12.2nC | |
| Threshold Voltage | 1.3V@250µA | |
| Drain Current | 4A | |
| Drain Source Voltage (Vdss) | 30V | |
| Operating Temperature | -55℃~+150℃ | |
| Installation Type | SMT | |
| Transistor Type | P-Channel | |
| Package / Case | SOT-23 | |
| Conduction Resistance (RDS (on) @ Vgs, Id) | 44mΩ@10V,4.3A | |
| Power Dissipation | 1.4W | |
| Power (Watts) | 1.4W | |
| Total Gate Charge | 14nC | |
| Reverse Transfer Capacitance | 55pF | |
| Breakdown voltage of grid and source | ±12V | |
| Breakdown Voltage | 30V | |
| Polarization | P-Channel | |
| Partlife Cycle | Active | |
| Storage Temperature | -55℃~+150℃ | |
| Lead Quantity | 3Pin | |
| Height | 1.25mm | |
| L x W/Size | 2.90 x 1.60mm | |
| Country of Origin | America | |
| Original Manufacturer | Alpha and Omega Semiconductor | |
| Type | 1 P channel | |
| Input Capacitance Ciss | 1.2nF@15V | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Lead Free Or Not | Yes | |
| Series | - | |
| Part Status | Active |
