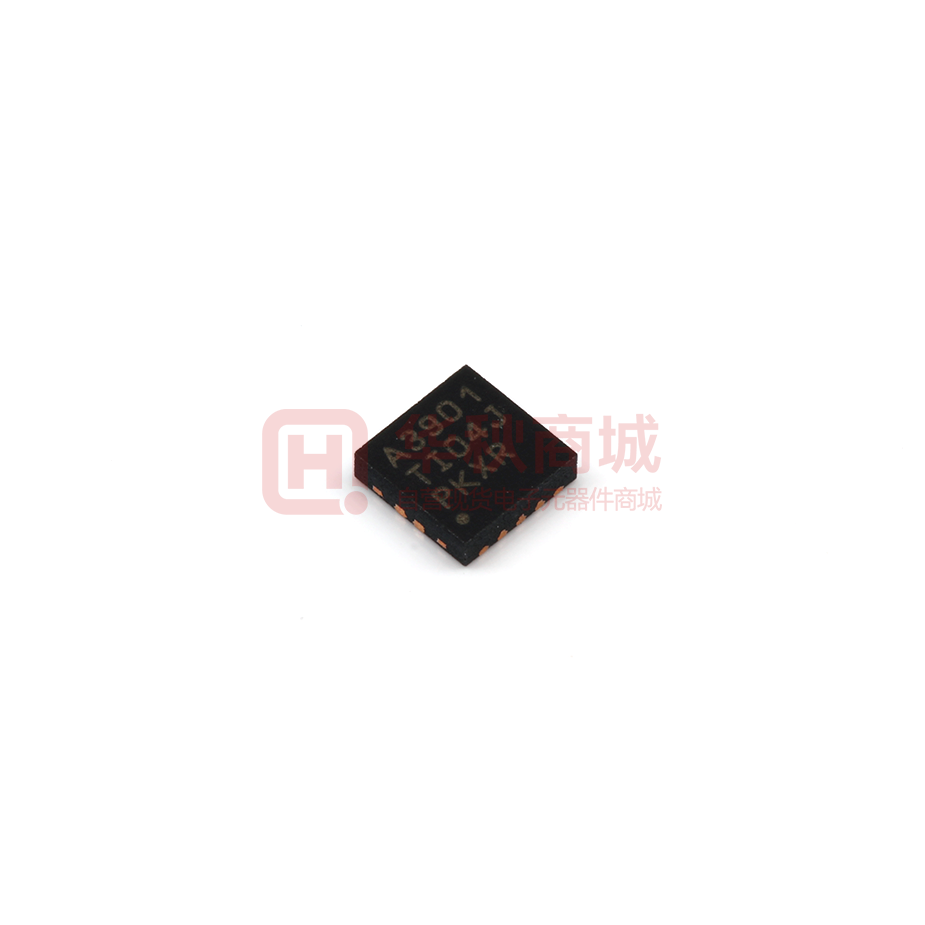

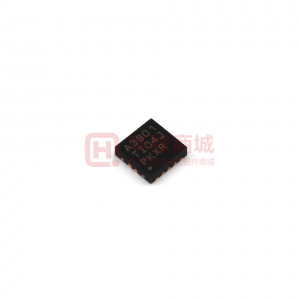

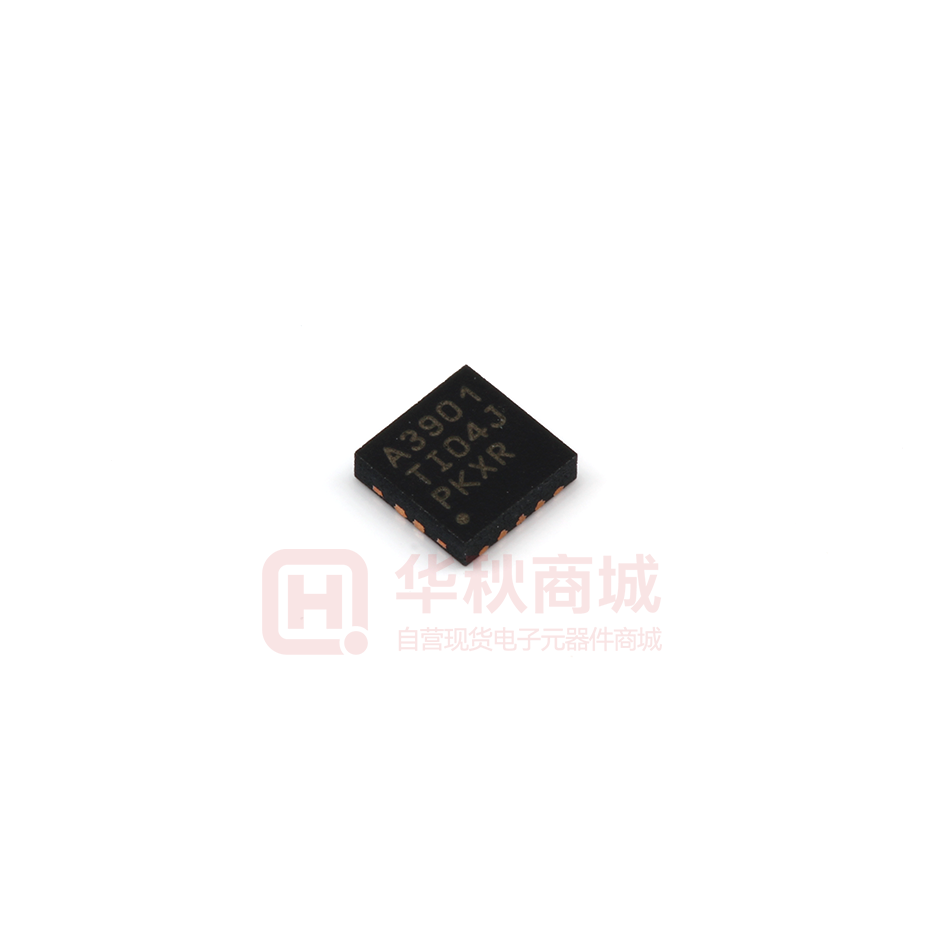

Images are for reference only


  • Mfr Part #TPS7A3901DSCR
  • ManufacturerTI
  • HQ Part #PM0144480
  • PackageWSON10_3X3MM_EP
  • Lead Time Ship immediately
  • DescriptionPMIC - Voltage regulator - Linear positive and negative adjustable 2 outputs 150mA 10-WSON (3x3)

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Quiescent Current150µA
Output Current150mA
Type Of OutputAdjustable
Output ConfigurationPositive and Negative
Operating Current904µA
Package / CaseWSON10_3X3MM_EP
Installation TypeSMT
Number of Regulators2
Input Voltage Range±33V
Power Supply Rejection Ratio(PSRR)69dB
Original ManufacturerTexas Instruments Incorporated
Size3.00 x 3.00mm
CharacteristicOver Temperature, Under Voltage Lockout (UVLO)
Control Characteristics-
Operating Temperature-40~+125℃
