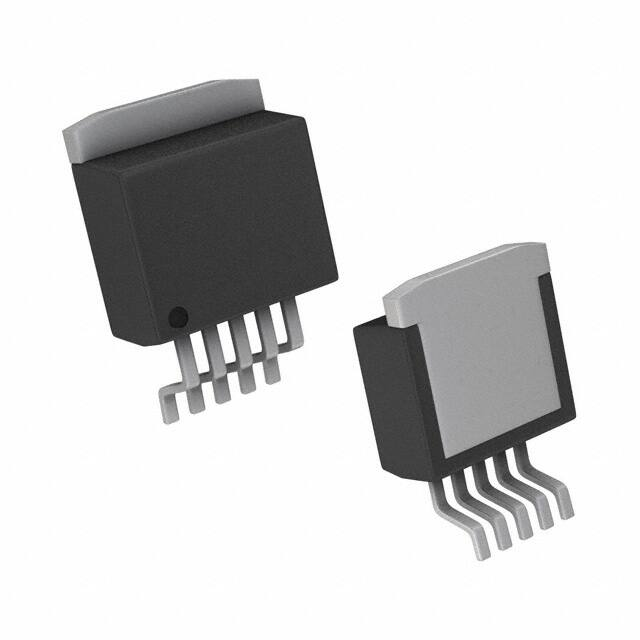

Images are for reference only
TPS75501KTTRG3
- Mfr Part #TPS75501KTTRG3
- ManufacturerTI
- HQ Part #IC0432248
- PackageTO-263-5
- Lead Time Ship immediately
Description5A 60dB@(100Hz) 200uA -40℃~+125℃ Adjustable 1.22V Positive 1 5.5V TO-263-5 Linear Voltage Regulators (LDO) ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Lead Quantity | 6Pin | |
| Quiescent Current | 200μA | |
| Output Current | 5A | |
| Type Of Output | Adjustable | |
| Output Configuration | Positive | |
| Output Voltage | Adjustable | |
| Package / Case | TO-263-5 | |
| Installation Type | SMT | |
| Number of Output Channels | 1 | |
| Number of Regulators | 1 | |
| Input Voltage Range | 5.5V | |
| Polarization | Positive electrode | |
| Power Supply Rejection Ratio(PSRR) | 60dB | |
| Original Manufacturer | Texas Instruments Incorporated | |
| Height | 4.83mm | |
| Size | 10.67 x 9.65mm | |
| Characteristic | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | |
| Control Characteristics | Enable,Power Good | |
| Operating Temperature | -40℃~+125℃ | |
| Series | - | |
| Lead Free Or Not | Yes |
