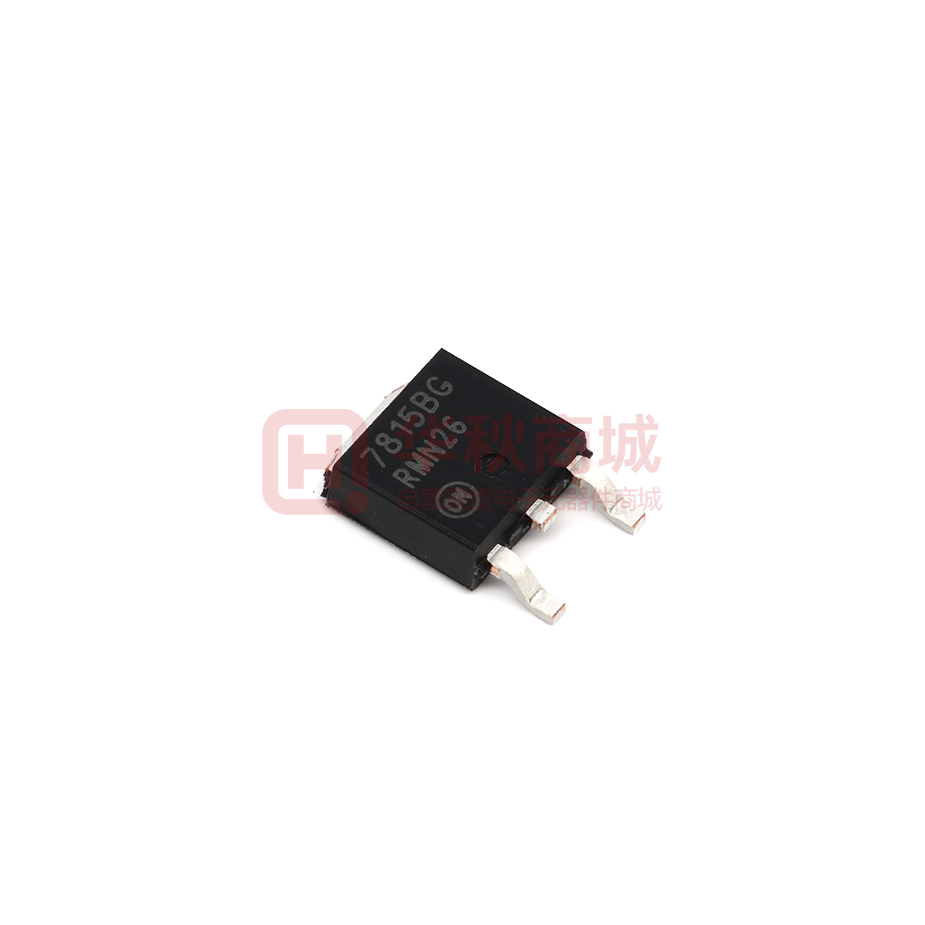

Linear Voltage Regulators / LDOs ON MC7815BDTRKG

  • Mfr Part #MC7815BDTRKG
  • ManufacturerON
  • HQ Part #IC0137938
  • PackageDPAK3
  • Lead Time Ship immediately
  • Description1.0 A Positive Voltage Regulators DPAK-3 VO=15V

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Lead Quantity3Pins
Quiescent Current8mA
Differential Pressure2V@1A
Voltage Regulator Topology-
Output Current1A
Output Voltage (Minimum/Fixed)15V
Type Of OutputFixed
Output ConfigurationPositive
Output Voltage 15V
Package / CaseDPAK3
Installation TypeSMT
Number of Regulators1
Input Voltage Range35V
Forward Voltage VF Max2V
Power Supply Rejection Ratio(PSRR)58dB
Partlife CycleActive
Country of OriginAmerica
Original ManufacturerON Semiconductor Inc.
Size6.73 x 6.22mm
CharacteristicOver Temperature, Short Circuit
Operating Temperature-40~+125℃
