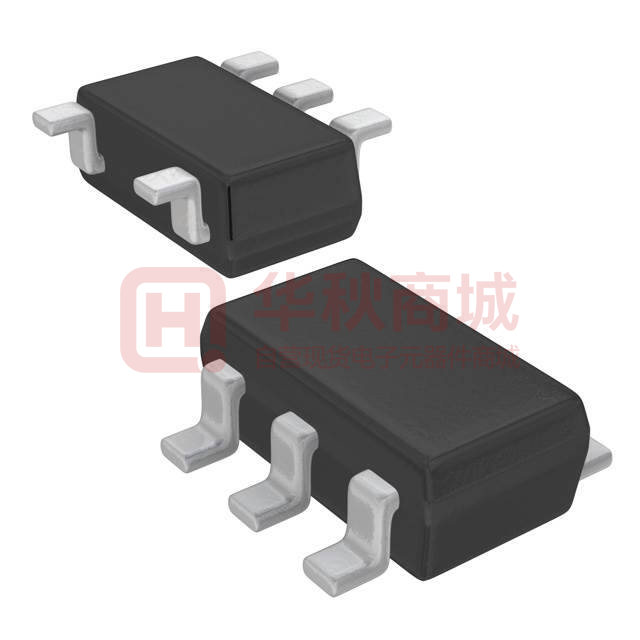

Images are for reference only

MIC5504-3.3YM5-TR

  • Mfr Part #MIC5504-3.3YM5-TR
  • ManufacturerMicrochip
  • HQ Part #IC0230296
  • PackageSOT23-5
  • Lead Time Ship immediately
  • DescriptionLDO Voltage Regulators Single 300mA LDO

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Lead Quantity5Pins
Quiescent Current55µA
Output Current300mA
Type Of OutputFixed
Output ConfigurationPositive
Operating Current65μA
Output Voltage 3.3V
Number Of Outputs1
Package / CaseSOT23-5
Installation TypeSMT
Number of Regulators1
Input Voltage Range2.5V~5.5V
Forward Voltage VF Max0.38V@1.5A
Load Regulation8mV
Power Supply Rejection Ratio(PSRR)60dB
Partlife CycleActive
Country of OriginAmerica
Original ManufacturerMicrochip Technology Inc.
BrandMicrochip
Height1.45mm
Size2.90 x 1.60mm
CharacteristicOver Current, Over Temperature
Control Characteristics-
Operating Temperature-40~+125℃
Series-
Terms of Service
ShippingDelivery Period For stock parts, orders placed on HQonline from 8:00-16:00 will be dispatched on the same day
Once shipped, the transit time depends on the logistics provider you choose:
DHL Express, 3-5 days
FedEx International, 3-5 days
China Post Airmail, 15-45 days
Shipping RateShipping rate for your order can be found in the shopping cart.
Shipping OptionWe provide DHL, FedEx, and China Post Airmail shipping.
Shipping TrackingWe will notify you by email with a tracking number once the order is shipped. You can also find the tracking number in the order history.
Returning/WarrantyReturning HQonline only accepts return requests due to quality issues. Return requests should be submitted within 30 days of delivery of the goods, please contact customer service for a return authorization.
Parts should be unused and in original packaging.
The customer has to take charge of the shipping.
Warranty All HQonline purchases come with a 30-day money-back return policy, plus a 90-day HQonline warranty against any manufacturing defects.
This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by the customer to follow instructions, product modification, negligent or improper operation.
OrderingHow to Buy HQonline accepts online orders.
Add to cart > Check out > Submit order > Complete payment >Delivery
Payment PayPal, Payoneer, Credit Card includes Visa, Master, American Express, JCB, Discover.
Western Union, Bank Transfer, Payoneer, AliExpress.
981 In Stock
Qty
Minimum1 Mutiple1
Unit Price$ 0.0557
Ext Price$ 0
Add to Cart
Buy Now
Pricing (USD)
QtyUnit PriceExt Price
1+$0.16542 $0.16542
10+$0.15943 $1.59430
100+$0.14505 $14.50500
500+$0.13785 $68.92500
