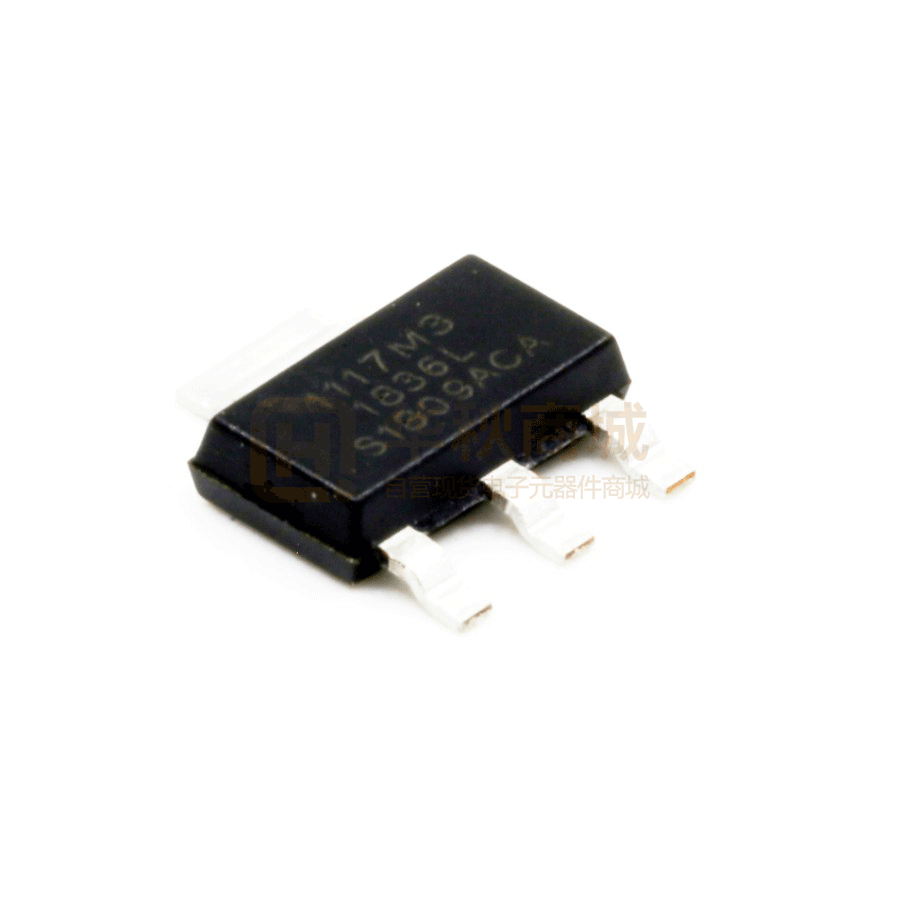

Images are for reference only

Linear Voltage Regulators / LDOs EXAR SPX1117M3-L/TR

  • Mfr Part #SPX1117M3-L/TR
  • ManufacturerEXAR
  • HQ Part #IC0415888
  • PackageSOT223
  • Lead Time Ship immediately
  • DescriptionSPX1117 Series ADJ Output Voltage 800 mA SMT LDO Regulator

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Lead Quantity4Pin
Output Voltage Accuracy±3%
Quiescent Current10mA
Differential Pressure1.3V@800mA
Voltage Regulator Topology-
Output Current800mA
Output Voltage (Maximum)15V
Output Voltage (Minimum/Fixed)1.25V
Type Of OutputAdjustable
Output ConfigurationPositive
Operating Current800mA
Output Voltage 1.25V
Number Of Outputs1
Package / CaseSOT223
Installation TypeSMT
Supply Voltage20V
Number of Regulators1
Input Voltage Range20V
Forward Voltage VF Max1.3V
Power Supply Rejection Ratio(PSRR)70dB
Partlife CycleActive
Application LevelIndustrial
Storage Temperature-40~+125℃
Country of OriginAmerica
Original ManufacturerMaxLinear
Current - Limit (Minimum)1A
Size6.50 x 3.50mm
Operating Temperature-40~+125℃
Terms of Service
ShippingDelivery Period For stock parts, orders placed on HQonline from 8:00-16:00 will be dispatched on the same day
Once shipped, the transit time depends on the logistics provider you choose:
DHL Express, 3-5 days
FedEx International, 3-5 days
China Post Airmail, 15-45 days
Shipping RateShipping rate for your order can be found in the shopping cart.
Shipping OptionWe provide DHL, FedEx, and China Post Airmail shipping.
Shipping TrackingWe will notify you by email with a tracking number once the order is shipped. You can also find the tracking number in the order history.
Returning/WarrantyReturning HQonline only accepts return requests due to quality issues. Return requests should be submitted within 30 days of delivery of the goods, please contact customer service for a return authorization.
Parts should be unused and in original packaging.
The customer has to take charge of the shipping.
Warranty All HQonline purchases come with a 30-day money-back return policy, plus a 90-day HQonline warranty against any manufacturing defects.
This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by the customer to follow instructions, product modification, negligent or improper operation.
OrderingHow to Buy HQonline accepts online orders.
Add to cart > Check out > Submit order > Complete payment >Delivery
Payment PayPal, Payoneer, Credit Card includes Visa, Master, American Express, JCB, Discover.
Western Union, Bank Transfer, Payoneer, AliExpress.
7,210 In Stock
Minimum1 Mutiple1
Unit Price$ 0.0557
Ext Price$ 0
Add to Cart
Buy Now
Pricing (USD)
QtyUnit PriceExt Price
1+$0.17468 $0.17468
30+$0.16807 $5.04210
100+$0.16146 $16.14600
500+$0.14824 $74.12000
1000+$0.14163 $141.63000
2000+$0.13766 $275.32000
