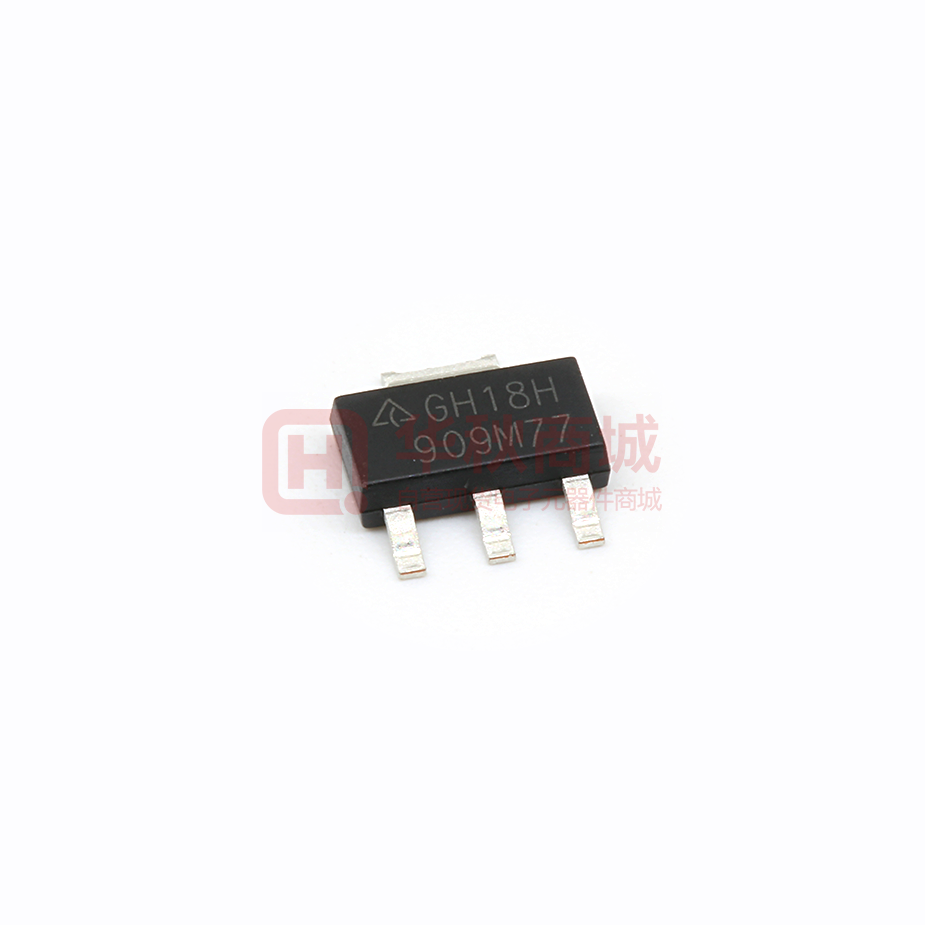

AZ1117EH-5.0TRG1

  • Mfr Part #AZ1117EH-5.0TRG1
  • ManufacturerDIODES
  • HQ Part #IC0232030
  • PackageSOT-223-3
  • Lead Time Ship immediately
  • DescriptionOutput type: Fixed Output polarity: positive Maximum input voltage: 13V Output voltage: 5V Output current: 1A

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Lead Quantity4Pin
Output Voltage Accuracy±1%
Quiescent Current6mA
Output Current1A
Type Of OutputFixed
Output ConfigurationPositive
Output Voltage 5V
Installation TypeSMT
Number of Regulators1
Input Voltage Range13V
Forward Voltage VF Max1.3V
Power Supply Rejection Ratio(PSRR)70dB
Partlife CycleActive
Country of OriginAmerica
Original ManufacturerDiodes Incorporated
BrandDiodes
Height1.80mm
Size6.50 x 3.50mm
CharacteristicThermal Shutdown
Operating Temperature-40~+125℃
SeriesAZ1117E
