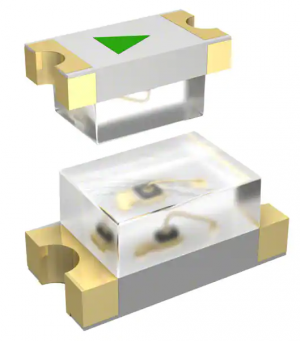

Images are for reference only

150060GS75000

  • Mfr Part #150060GS75000
  • ManufacturerWurth
  • HQ Part #PH0010430
  • Package0603
  • Lead Time Ship immediately
  • DescriptionLED Indicators Emerald Green 0603 525nm 430mcd Front Mounting

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Luminous ColorEmerald Green
Number Of Led Lights1
Circuit ConfigurationSingle
Power105mW
Size1.60 x 0.80mm
Luminance Value (Light Intensity)430mcd
Angle Of View140°
Main Wavelength (Typ)525nm
Forward Voltage (Vf)3.2V
Voltage Dc Reverse (Vr) (Maximum)5V
Package / Case0603
Lead Quantity2Pins
Reverse Leakage Current IR10µA
Partlife CycleActive
Country of OriginGermany
Original ManufacturerWürth Elektronik GmbH & Co. KG, Germany
BrandWurth
Height0.70mm
Lens Colorcolourless
Lens TransparencyTransparent
Part StatusActive
Forward Current30mA
