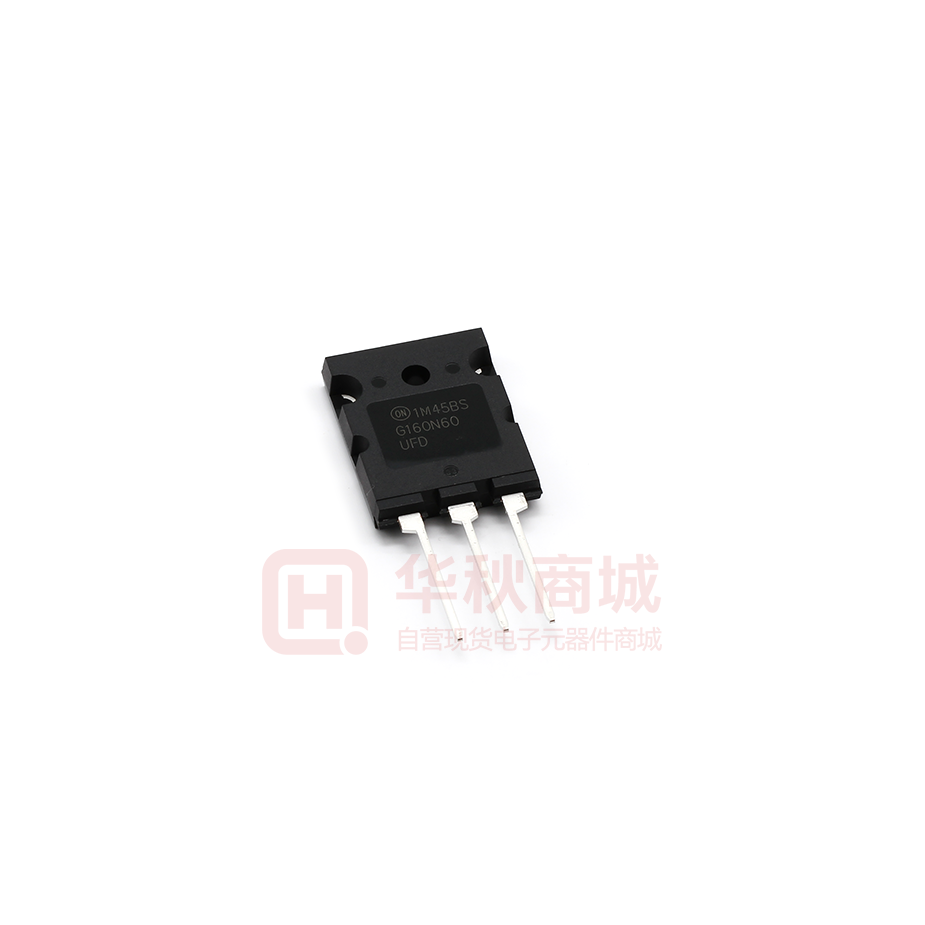

SGL160N60UFDTU
- Mfr Part #SGL160N60UFDTU
- ManufacturerON
- HQ Part #DS0107322
- PackageTO264-3
- Lead Time Ship immediately
Description600V 160A 250W 2.5mJ -55℃~+150℃@(Tj) 1.76mJ 300A TO-264-3 IGBTs ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Forward Current | 25A | |
| Grid Charge (Qg) | 345nC | |
| Vce Saturation Pressure Drop | 2.1V | |
| Operating Temperature | -55℃~+150℃ | |
| Installation Type | DIP | |
| Collector - Emitter Voltage VCEO | 600V | |
| Transistor Type | - | |
| Package / Case | TO264-3 | |
| Collector Current Ic | 160A | |
| Power Dissipation | 250W | |
| Forward Voltage VF | 1.4V | |
| Collector-Emitter Breakdown Voltage | 600V | |
| Collector- Emitter Voltage(VCE(sat)) | 600V | |
| Turn-off Delay Time | - | |
| Turn-on Delay Time | 40ns | |
| Reverse Recovery Charge | 112nC | |
| Turn-off Energy | 1.76mJ | |
| Turn-on Energy | 2.5mJ | |
| Partlife Cycle | Active | |
| Storage Temperature | -55℃~+150℃ | |
| Lead Quantity | 3Pin | |
| Height | 28.50mm | |
| L x W/Size | 20.00 x 5.00mm | |
| Country of Origin | America | |
| Original Manufacturer | ON Semiconductor Inc. | |
| Reverse Recovery Time (trr) | 95ns | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Lead Free Or Not | No | |
| Series | - | |
| Part Status | Active |
