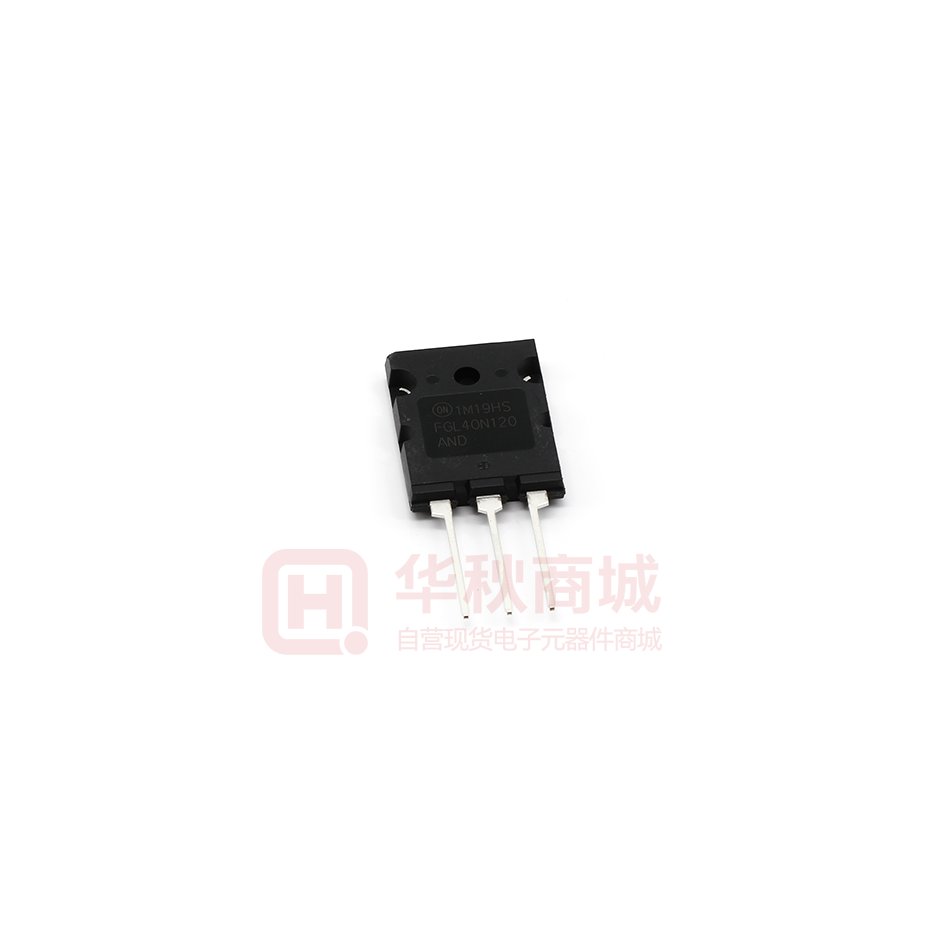

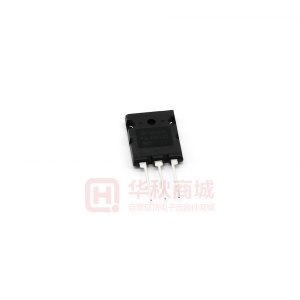

FGL40N120ANDTU
- Mfr Part #FGL40N120ANDTU
- ManufacturerON
- HQ Part #DS0107314
- PackageTO264-3
- Lead Time Ship immediately
Description500W -55℃~+150℃@(Tj) 64A 1200V NPT 160A 1.1mJ 2.3mJ TO-264-3 IGBTs ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Forward Current | 40A | |
| Grid Charge (Qg) | 220nC | |
| Vce Saturation Pressure Drop | 2.6V | |
| Operating Temperature | -55℃~+150℃ | |
| Installation Type | DIP | |
| Collector - Emitter Voltage VCEO | 1.2KV | |
| Transistor Type | NPT | |
| Package / Case | TO264-3 | |
| Collector Current Ic | 64A | |
| Power Dissipation | 500W | |
| Forward Voltage VF | 3.2V | |
| Collector- Emitter Voltage(VCE(sat)) | 1.2KV | |
| Turn-off Delay Time | - | |
| Turn-on Delay Time | 15ns | |
| Reverse Recovery Charge | 300nC | |
| Turn-off Energy | 1.1mJ | |
| Turn-on Energy | 2.3mJ | |
| Partlife Cycle | Active | |
| Storage Temperature | -55℃~+150℃ | |
| Lead Quantity | 3Pin | |
| Height | 26.00mm | |
| L x W/Size | 20.00 x 5.00mm | |
| Certification | RoHS | |
| Country of Origin | America | |
| Original Manufacturer | ON Semiconductor Inc. | |
| Reverse Recovery Time (trr) | 112ns | |
| Moisture Sensitivity Level (MSL) | Not Applicable | |
| Lead Free Or Not | No | |
| Series | - | |
| Part Status | Active |
