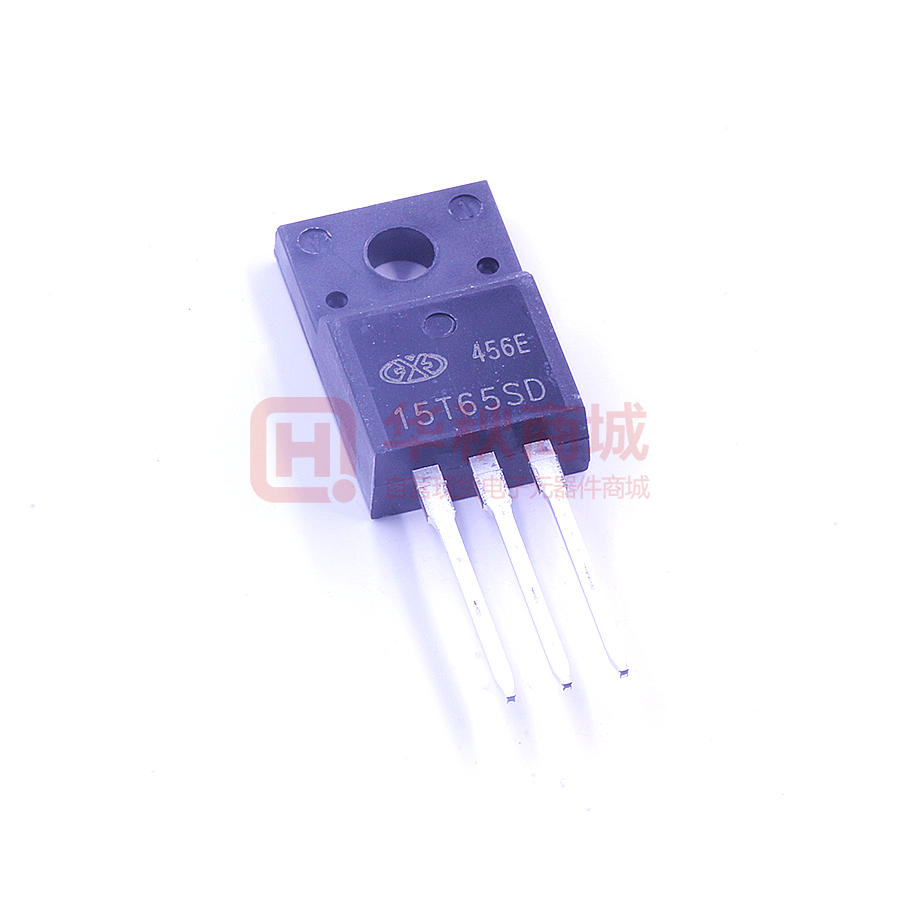

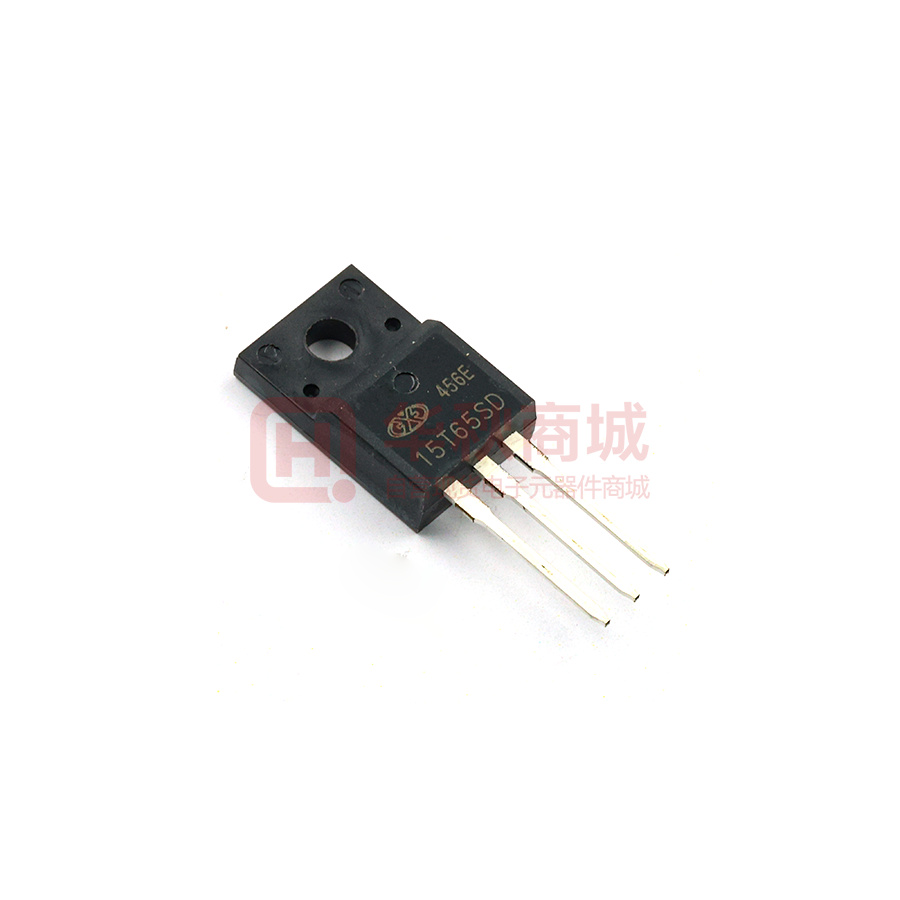

Images are for reference only
15T65SD
- Mfr Part #15T65SD
- ManufacturerJuxing
- HQ Part #DS39730398
- PackageITO-220AB
- Lead Time Ship immediately
DescriptionIGBTs 650V 15A ITO-220AB
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Grid Charge (Qg) | - | |
| Vce Saturation Pressure Drop | - | |
| Operating Temperature | -40℃~+150℃(TJ) | |
| Installation Type | DIP | |
| Collecting Emitter Breakdown Voltage Vce (Max) | 650V | |
| Transistor Type | - | |
| Package / Case | ITO-220AB | |
| Collector Current Ic | 15A | |
| Power (Watts) | 37.5W | |
| Forward Voltage VF | 1.9V | |
| Turn-off Delay Time | 60ns | |
| Turn-on Delay Time | 125ns | |
| Turn-off Energy | 210uJ | |
| Turn-on Energy | 330uJ | |
| Lead Quantity | 3Pin | |
| Height | 16.00mm | |
| L x W/Size | 10.40 x 4.70mm | |
| Reverse Recovery Time (trr) | 186ns |
