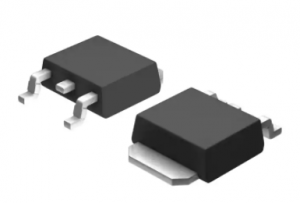

AOD5B65M1
- Mfr Part #AOD5B65M1
- ManufacturerAOS
- HQ Part #DS0107584
- PackageD-PAK
- Lead Time Ship immediately
Description650V, 5A Alpha IGBT With soft and fast recovery anti-parallel diode DPAK
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Forward Current | 10A | |
| Grid Charge (Qg) | 14nC | |
| Operating Temperature | -55℃~+150℃ | |
| Installation Type | SMT | |
| Collecting Emitter Breakdown Voltage Vce (Max) | 650V | |
| Transistor Type | - | |
| Package / Case | D-PAK | |
| Collector Current Ic | 10A | |
| Power Dissipation | 69W | |
| Power (Watts) | 69W | |
| Collector- Emitter Voltage(VCE(sat)) | 650V | |
| Turn-off Delay Time | 106ns | |
| Turn-on Delay Time | 8.5ns | |
| Turn-off Energy | 0.07mJ | |
| Turn-on Energy | 0.08mJ | |
| Partlife Cycle | Active | |
| Lead Quantity | 3Pin | |
| Height | 2.29mm | |
| L x W/Size | 6.60 x 6.10mm | |
| Country of Origin | America | |
| Original Manufacturer | Alpha and Omega Semiconductor | |
| Reverse Recovery Time (trr) | 195ns | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Lead Free Or Not | Yes | |
| Series | AlphaIGBT™ | |
| Part Status | Active |
