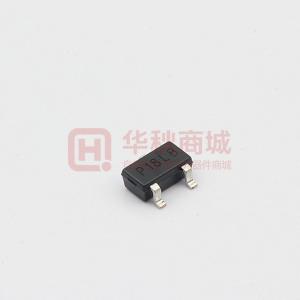

Images are for reference only

Hall Effect Switches DIODES AH337-WG-7

  • Mfr Part #AH337-WG-7
  • ManufacturerDIODES
  • HQ Part #ST0070730
  • PackageSC59
  • Lead Time Ship immediately
  • DescriptionSC-59 Hall Sensor ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Current Output (Maximum)25mA
Sensing Range-
Test Conditions25°C
CharacteristicTemperature Compensated
Type Of Output-
Installation TypeSMT
Supplier Device PackagingSC-59-3
Operating Temperature-40°C~125°C
Current - Power2mA
Voltage - Power4.2~28V
Moisture Sensitivity Level (Msl)-
Package / CaseSC-59
ApplicationConsumer, Industrial,
Partlife CycleActive
Storage Temperature-65~+150℃
Lead Quantity3Pin
Product StateNot For New Designs
Marking TypeLaser
Country of OriginAmerica
Original ManufacturerDiodes Incorporated
FunctionUnipolar Switch
Current - Power (Maximum)4mA
Lead Free Or NotYes
Manufacturer'S Standard Lead Time-
Part Status-
