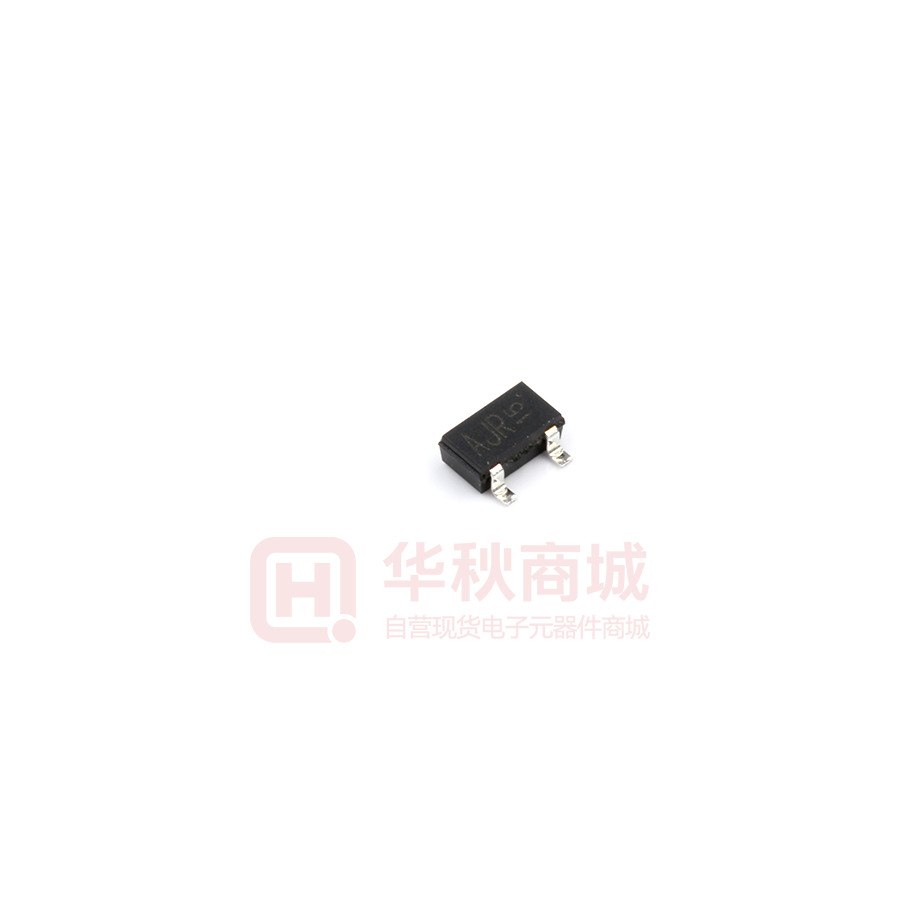

Images are for reference only
2SD1782KT146R
- Mfr Part #2SD1782KT146R
- ManufacturerROHM
- HQ Part #DS0112811
- PackageSOT346
- Lead Time Ship immediately
Description500nA 80V 200mW 180@100mA,3V 500mA 120MHz 200mV@500mA,50mA NPN +150℃@(Tj) SOT-346 Bipolar Transistors - BJT ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Vce Saturation Pressure Drop | 500mV | |
| Operating Temperature | +150℃ | |
| Installation Type | - | |
| Collecting Emitter Breakdown Voltage Vce (Max) | 80V | |
| Transistor Type | NPN | |
| DC Current Gain (hFE) (Min&Range) | 180 | |
| Transition Frequency | 120MHz | |
| Package / Case | SOT346 | |
| Collector Current Ic | 500mA | |
| Power Dissipation | 200mW | |
| Collector- Emitter Voltage VCEO | 80V | |
| Emitter-Base Voltage VEBO | 5V | |
| Collector Base Voltage (VCBO) | 80V | |
| Polarization | NPN | |
| Storage Temperature | -55~+150℃ | |
| Height | 1.30mm | |
| L x W/Size | 3.00 x 1.80mm | |
| Country of Origin | Japan | |
| Original Manufacturer | Rohm Co.,Ltd. | |
| Brand | Rohm | |
| Moisture Sensitivity Level (MSL) | - | |
| Lead Free Or Not | Yes | |
| Series | Original | |
| Part Status | Active |
