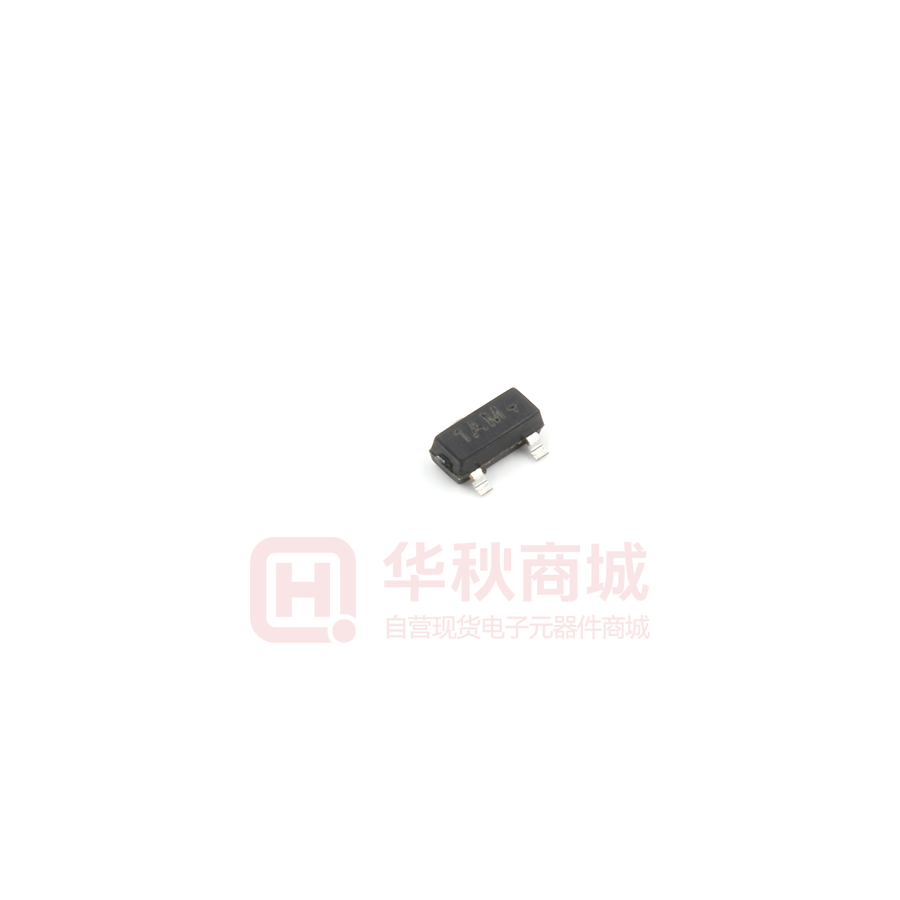

Images are for reference only

MMBT3904

  • Mfr Part #MMBT3904
  • ManufacturerHottech
  • HQ Part #DS0140101
  • PackageSOT-23
  • Lead Time Ship immediately
  • DescriptionGeneral Purpose Transistors NPN Ic=200mA Vceo=40V hfe=100~300 P=200mW SOT23

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
To ConfigureSingle
Vce Saturation Pressure Drop300mV
Operating Temperature+150℃(TJ)
Installation Type-
Collecting Emitter Breakdown Voltage Vce (Max)40V
Transistor TypeNPN
DC Current Gain (hFE) (Min&Range)100~300
Transition Frequency300MHz
Collector Current Ic200mA
Power Dissipation200mW
Collector- Emitter Voltage VCEO40V
Emitter-Base Voltage VEBO6V
Collector Base Voltage (VCBO)60V
PolarizationNPN
Partlife CycleActive
Storage Temperature-55~+150℃
Lead Quantity3Pin
Height1.15mm
L x W/Size2.90 x 1.30mm
Printing Code1AM
Country of OriginChina
Original ManufacturerGuangdong Hottech Co. Ltd.
BrandHottech
Lead Free Or NotYes
Part StatusActive
