Images are for reference only

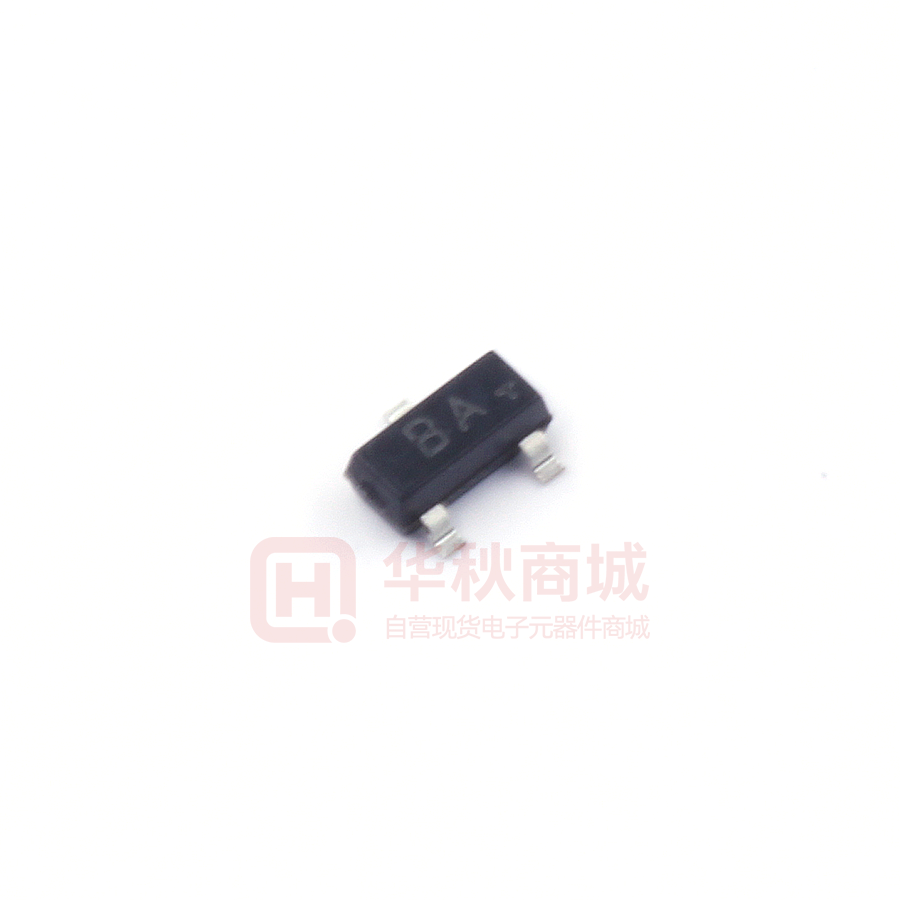

  • Mfr Part #2SA1015
  • ManufacturerHottech
  • HQ Part #DS0140109
  • PackageSOT-23
  • Lead Time Ship immediately
  • DescriptionTriode PNP Ic=500mA Vceo=50V hfe=130~400 P=200mW SOT23

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
To ConfigureSingle
Vce Saturation Pressure Drop300mV
Operating Temperature+150℃(TJ)
Installation Type-
Collecting Emitter Breakdown Voltage Vce (Max)50V
Transistor TypePNP
DC Current Gain (hFE) (Min&Range)130
Transition Frequency80MHz
Collector Current Ic150mA
Power Dissipation200mW
Collector- Emitter Voltage VCEO50V
Emitter-Base Voltage VEBO5V
Collector Base Voltage (VCBO)50V
Storage Temperature-55~+150℃
Lead Quantity3Pin
L x W/Size3.00 x 1.30mm
Printing CodeBA
Country of OriginChina
Original ManufacturerGuangdong Hottech Co. Ltd.
