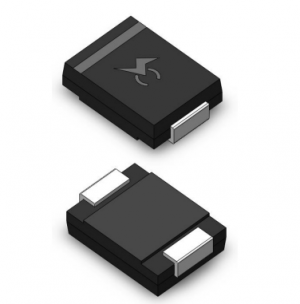

Images are for reference only

SMCJ36CA

  • Mfr Part #SMCJ36CA
  • ManufacturerSOCAY(硕凯)
  • HQ Part #UN0003246
  • PackageSMC
  • Lead Time Ship immediately
  • DescriptionESD Suppressor / TVS Diodes VRWM=36V VBR(min)=40V VC=58.1V@IPP=25.82A SMC

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Size7.11 x 6.20mm
Height2.62mm
Peak Pulse Current (Ipp)25.82A
Installation TypeSMT
Operating Temperature-55~+150℃
Breakdown Voltage V (Br) - Min40V
PolarityBidirectional
Package / CaseSMC
Lead Quantity2Pin
Breakdown Voltage Max44.2V
Partlife CycleActive
Country of OriginChina
Original ManufacturerShenZhen Socay Electronics Co., Ltd.
BrandSOCAY
Supply Voltage36V
Off State Voltage36V
Number Of Channels1
SeriesSMCJ
Lead Free Or NotYes
Power Peak Pulse1.5KW
