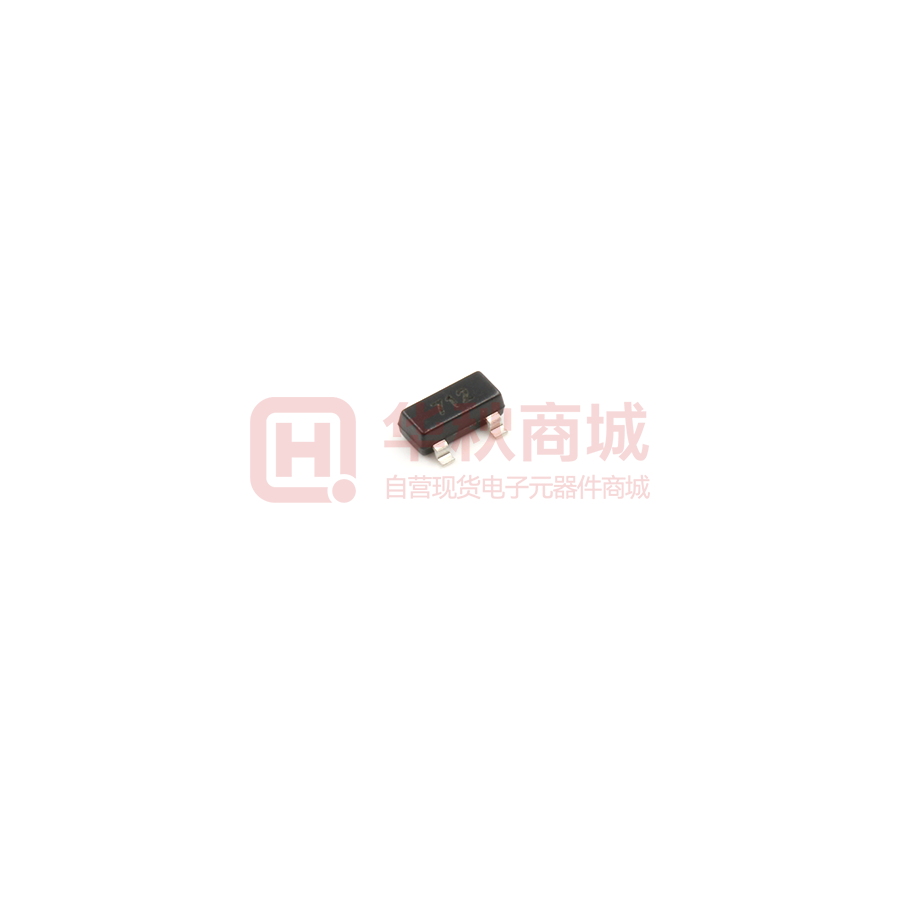

Images are for reference only
ESD Suppressor / TVS Diodes Semtech. SM712.TCT
- Mfr Part #SM712.TCT
- ManufacturerSemtech.
- HQ Part #CP0004119
- PackageSOT23-3L
- Lead Time Ship immediately
DescriptionESD suppressor /TVS diode VRWM=7,12V VBR(Min)=7.5,13.3V VC=19,26V IPP=21,38A
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Reverse Leakage Current Ir | - | |
| Number Of Components (Circuits) | - | |
| Size | 2.90 x 1.30mm | |
| Height | 1.12mm | |
| Packing | Tape/Reel | |
| Supplier Device Packaging | SOT-23-3 | |
| Junction Capacitance Value | 75pF@1MHz | |
| Installation Type | SMT | |
| Operating Temperature | -55~+125℃ | |
| Peak Pulse Power | 400W | |
| Breakdown Voltage V (Br) - Min | 7.5V,13.3V | |
| Polarity (Single And Two-Way) | Bidirectional | |
| Package / Case | SOT23-3L | |
| Lead Spacing | 1.9mm | |
| Lead Quantity | 3Pin | |
| Breakdown Voltage Min | - | |
| Partlife Cycle | Active | |
| MPQ | 3000pcs | |
| Country of Origin | America | |
| Original Manufacturer | Semtech Corporation | |
| Brand | Semtech | |
| Test Current (It) | - | |
| Supply Voltage | 12V | |
| Voltage - Off State | 7V,12V | |
| Part Status | Active | |
| Number Of Channels | 2 | |
| Series | - | |
| Type | - | |
| Power Line Protection | - | |
| Moisture Sensitivity Level (Msl) | - | |
| Application | - | |
| Lead Free Or Not | - | |
| Power Peak Pulse | 400W | |
| Manufacturer'S Standard Lead Time | - |
