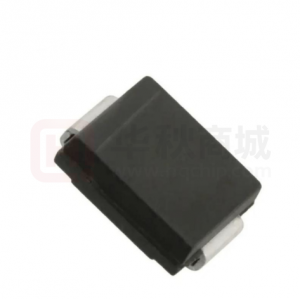

Images are for reference only

ESD Suppressor / TVS Diodes Anbon SMCJ20CA

  • Mfr Part #SMCJ20CA
  • ManufacturerAnbon
  • HQ Part #PD0000188
  • PackageSMC
  • Lead Time Ship immediately
  • DescriptionESD Suppressor / TVS Diodes VRWM=20V VBR(Min)=22.2V VC=32.4V IPP=46.3A Ppp=1.5KW SMC

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Size7.60 x 6.10mm
Height2.60mm
Peak Pulse Current (Ipp)46.3A
Installation TypeSMT
Operating Temperature-55~+150℃(TJ)
Breakdown Voltage V (Br) - Min22.2V
PolarityBidirectional
Package / CaseSMC
Lead Quantity2Pin
Breakdown Voltage Max24.5V
Partlife CycleActive
Storage Temperature-55~+150℃
CertificationRoHS
Marking TypePrinting Ink
Country of OriginChina Taiwan
Original ManufacturerAnbon Semiconductor Co., Ltd.
BrandAnbon
Supply Voltage-
Off State Voltage20V
GradeIndustrial
Part StatusActive
Number Of Channels1
SeriesSMCJ
ApplicationConsumer, Industrial
Lead Free Or NotYes
Power Peak Pulse1.5KW
