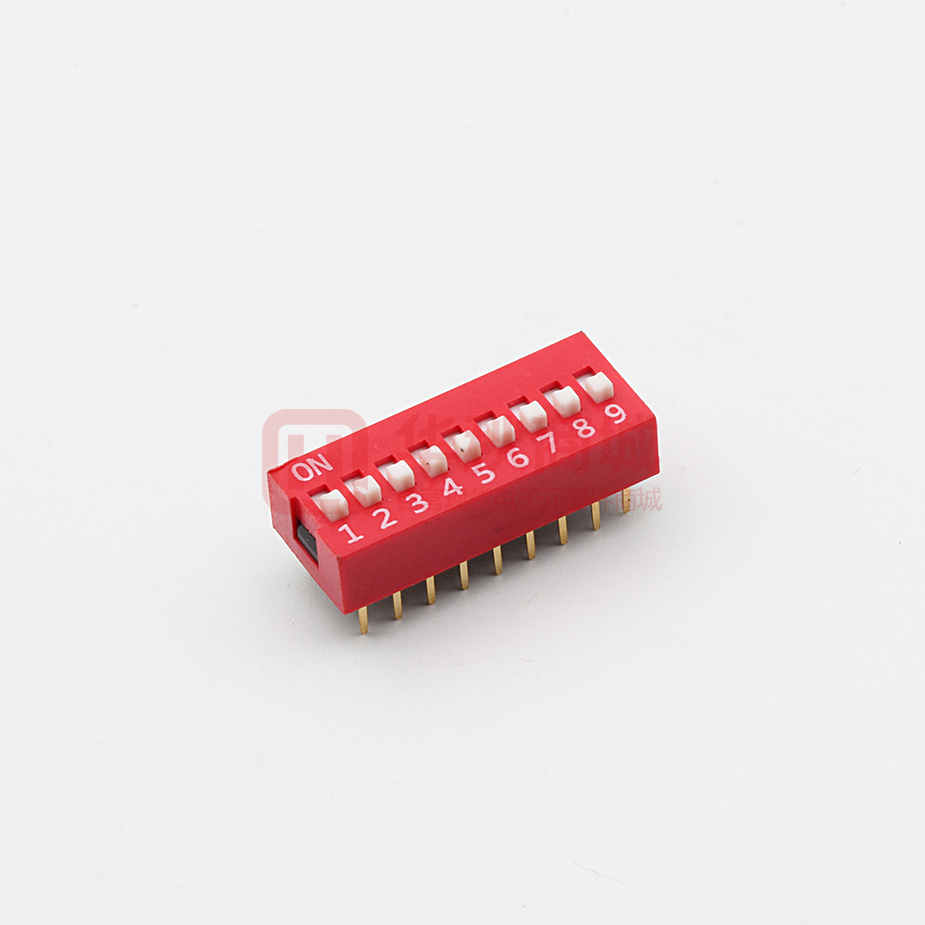

Images are for reference only

DS-09RP

  • Mfr Part #DS-09RP
  • ManufacturerXKB
  • HQ Part #SW0049245
  • PackageSW18_24.38X9.9MM_TM
  • Lead Time Ship immediately
  • DescriptionThe distance between dial switches is 2.54mm, 9-position straight red protruding rod is positive, 25mA, 24V, service life is 3000 times

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Package / CaseSW18_24.38X9.9MM_TM
Mechanical Life-
Installation TypeDIP
Actuator Type-
Rated Current-DC25mA
Lead Quantity18PIN
Contact FormSPST
BrandXKB
Switch Digits9
SeriesDS
Size24.38 x 9.90mm
Operating Life3000Cycles
Rated Voltage - Dc24V
Operating Temperature-20~+70℃
Spacing2.54mm
Height0.264"(6.70mm)
CircuitSPST
