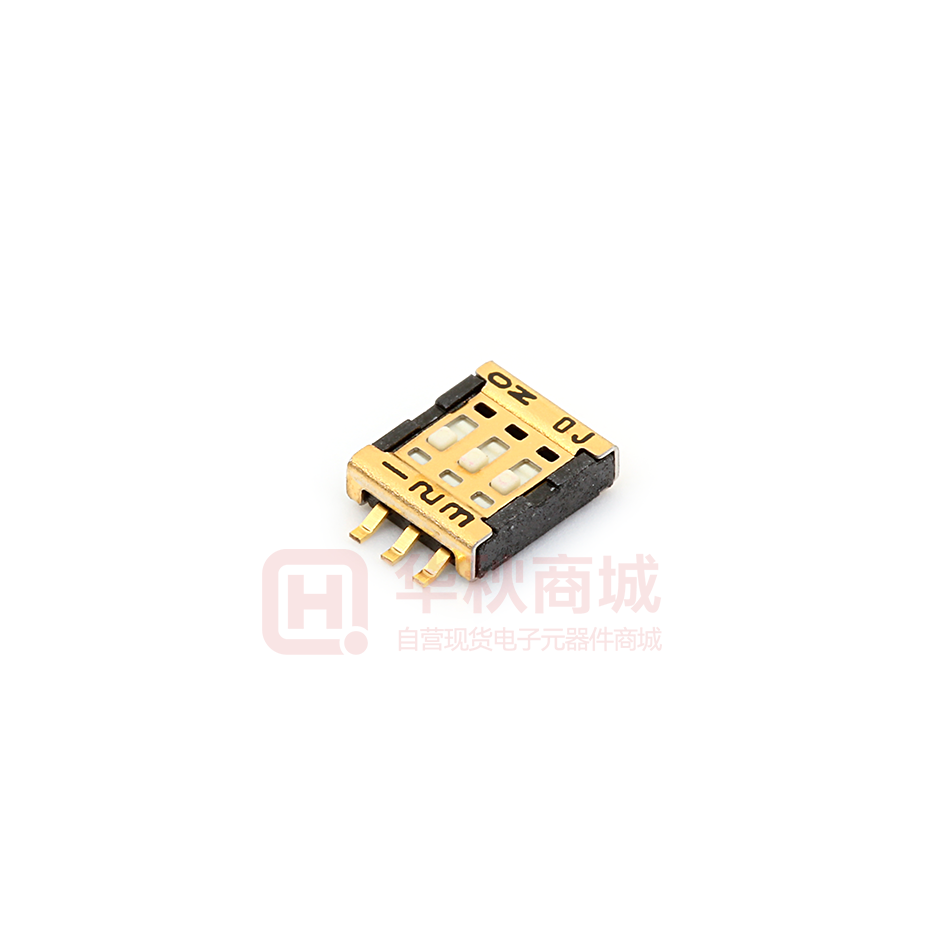

Images are for reference only
CVS-03TB-1
- Mfr Part #CVS-03TB-1
- ManufacturerNIDEC
- HQ Part #SW0049917
- Package-
- Lead Time Ship immediately
DescriptionNidec 4740 SPST-NO 6bit 3N 100mA 6V 4.7 x 4.0mm
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Package / Case | - | |
| Installation Type | SMT | |
| Contact Coating | Gold Over Copper | |
| Actuator Type | Sliding type(standard) | |
| Rated Voltage | 6V | |
| Rated Current-DC | 100mA | |
| Lead Quantity | 6Pin | |
| Lead Spacing | 1.00mm | |
| Contact Form | SPST-NO | |
| Partlife Cycle | Active | |
| Application Level | Industrial | |
| Storage Temperature | -40~+85℃ | |
| Application | Industrail | |
| Certification | RoHS | |
| Country of Origin | Japan | |
| Original Manufacturer | Nidec Copal Electronics Inc. | |
| Switch Function | On-Off | |
| Switch Digits | 3 place | |
| Part Status | Active | |
| Series | CVS | |
| Lead Free Or Not | Yes | |
| Size | 4.70 x 4.00mm | |
| Operating Force | 3N | |
| Operating Life | 1,000 Cycles | |
| Rated Voltage - Dc | 50V | |
| Operating Temperature | -40℃~+85℃ | |
| Height | 1.45mm | |
| Circuit | SPST |
