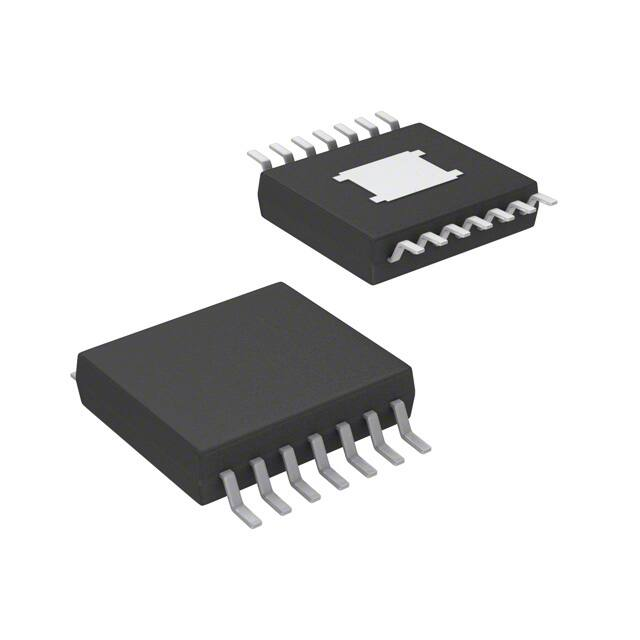

Images are for reference only

TPS54625PWPR

  • Mfr Part #TPS54625PWPR
  • ManufacturerTI
  • HQ Part #IC0329354
  • PackageHTSSOP14_5X4.4MM_EP
  • Lead Time Ship immediately
  • DescriptionStep-down type HTSSOP-14-EP DC-DC Converters ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Lead Quantity14Pins
Output Current6.5A
Type Of OutputAdjustable
Function-
Output ConfigurationPositive
Output Voltage 0.76~5.5V
Number Of Outputs1
Switching Frequency 650kHz
Topological Structure -
Package / CaseHTSSOP14_5X4.4MM_EP
Installation TypeSMT
Partlife CycleActive
Storage Temperature-55~+150℃
CertificationRoHS
Country of OriginAmerica
Original ManufacturerTexas Instruments Incorporated
BrandTI
Height1.20mm
Size5.00 x 4.40mm
Operating Temperature-40~+85℃
SeriesD-CAP2™
