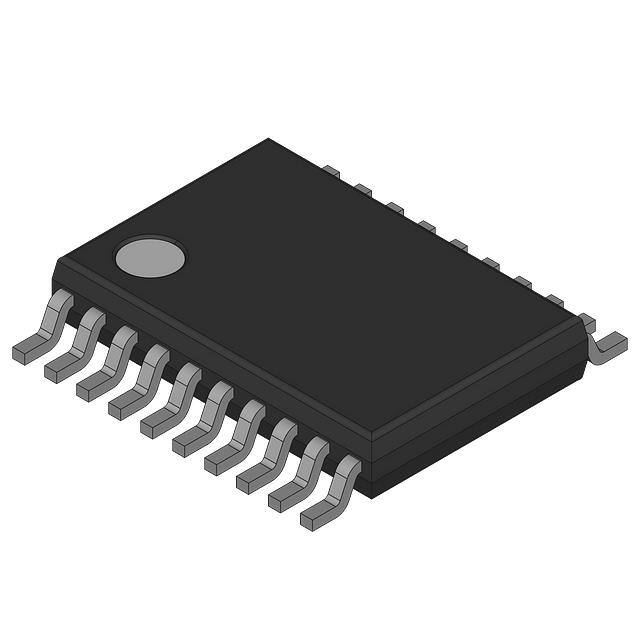

Images are for reference only

TPS54362BQPWPRQ1

  • Mfr Part #TPS54362BQPWPRQ1
  • ManufacturerTI
  • HQ Part #IC0332062
  • PackageHTSSOP20_EP
  • Lead Time Ship immediately
  • DescriptionNO Step-down type -40℃~+150℃@(TJ) 1 Step-down Adjustable 3.6V~48V 3A 0.9V~18V 2.2MHz HTSSOP-20-EP DC-DC Converters ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Lead Quantity20Pin
Output Current3A
Type Of OutputAdjustable
Function-
Output ConfigurationPositive
Output Voltage 0.9~18V
Number Of Outputs1
Switching Frequency 200kHz~2.2MHz
Topological Structure -
Package / CaseTSSOP20
Installation TypeSMT
Partlife CycleActive
Application LevelAEC-Q100
Storage Temperature-55~+165℃
CertificationRoHS
Country of OriginAmerica
Original ManufacturerTexas Instruments Incorporated
BrandTI
Height1.20mm
Size6.00 x 4.00mm
Operating Temperature-40~+150℃
SeriesAutomotive, AEC-Q100
